Analysis Summary

Index
>>> Good chips
Bad chips

Grade A:

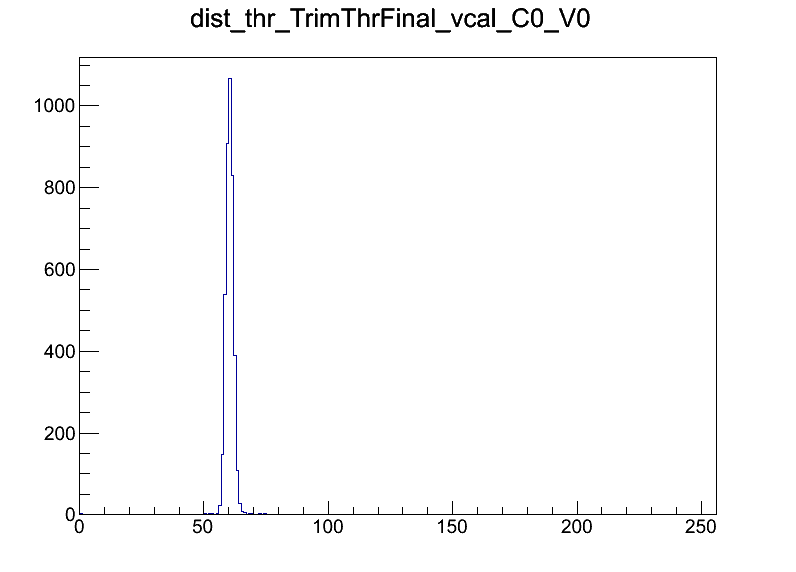

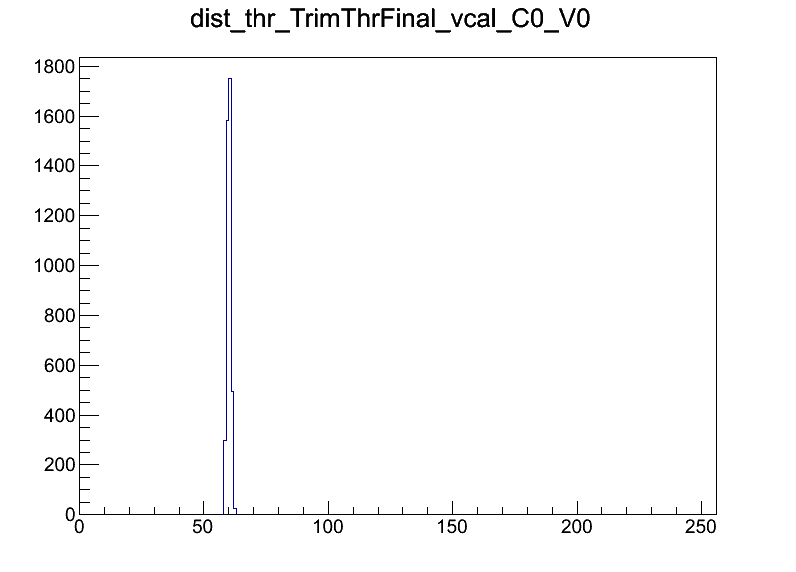

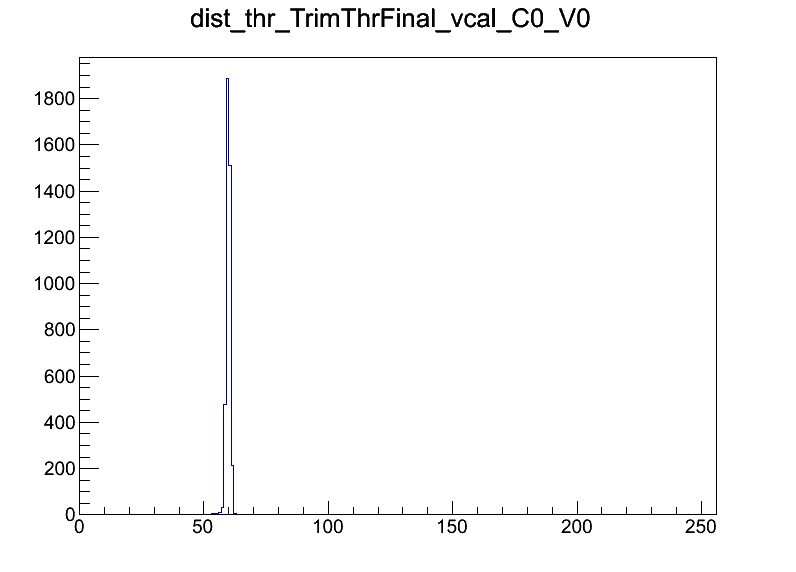

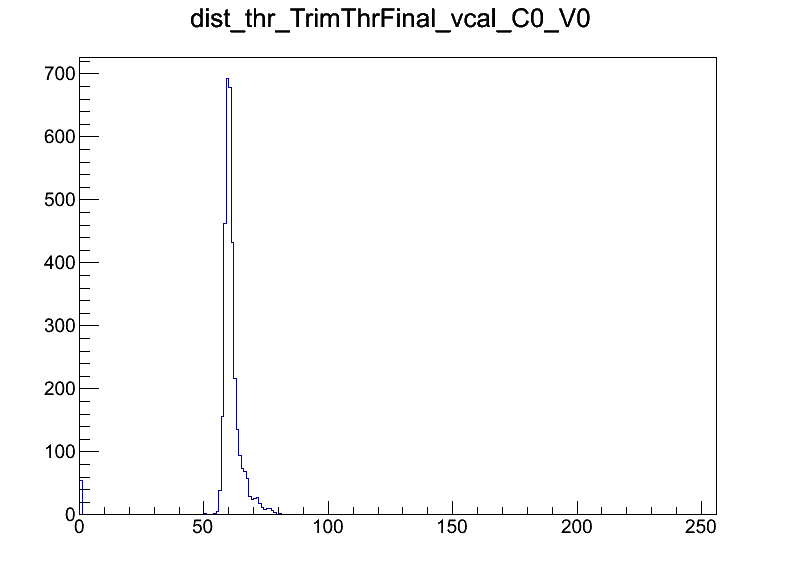

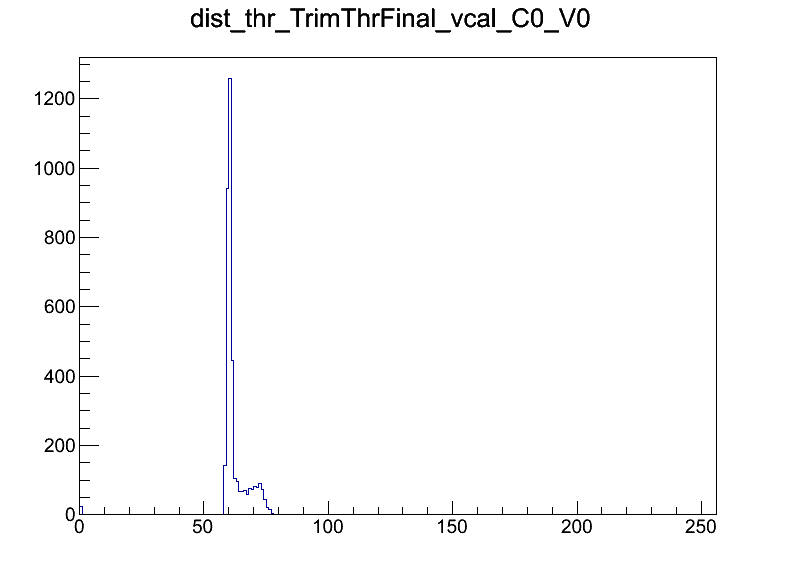

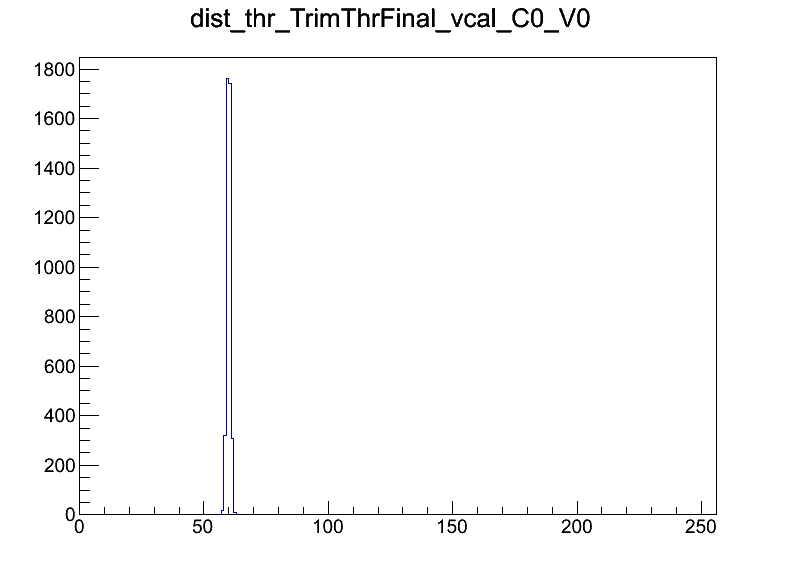

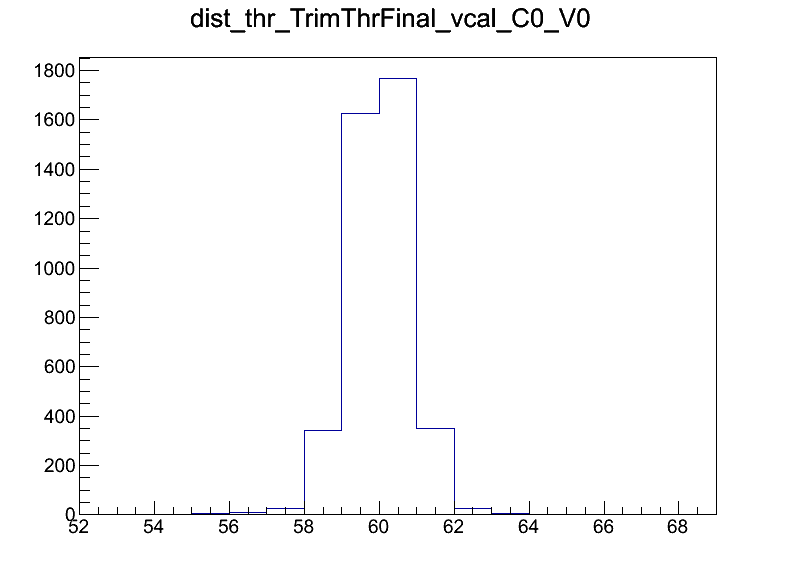

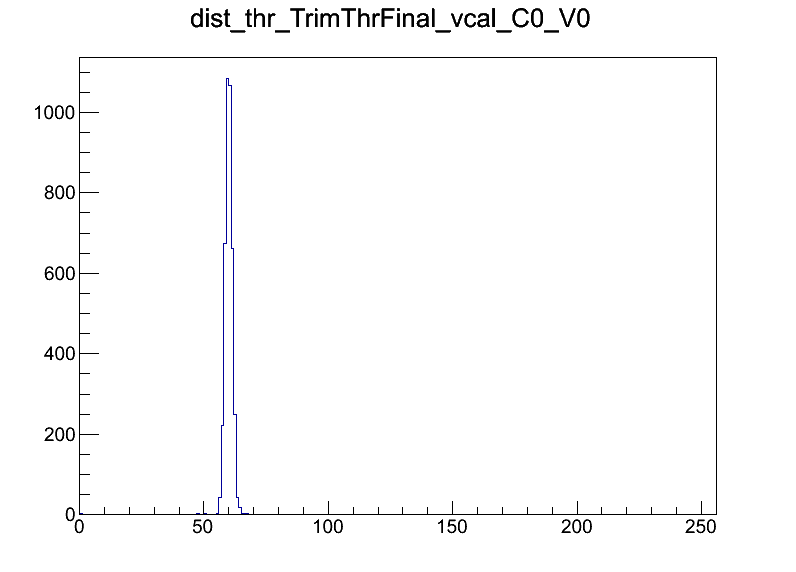

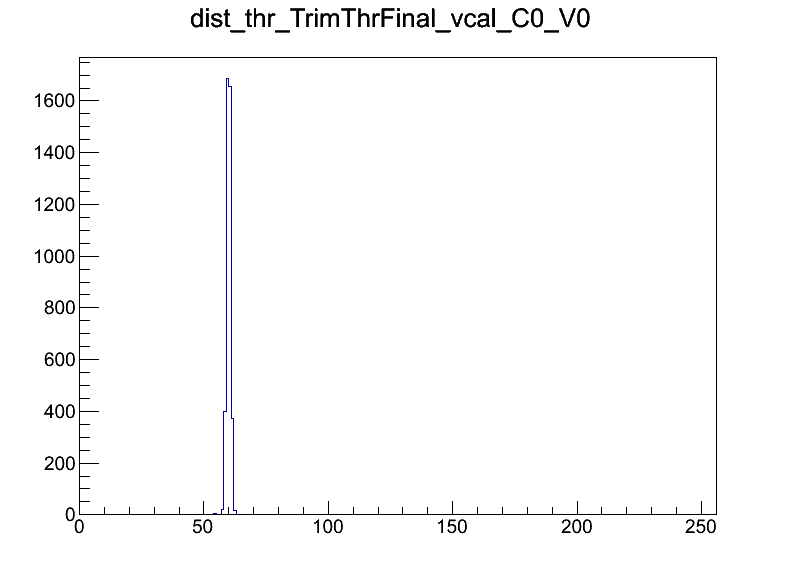

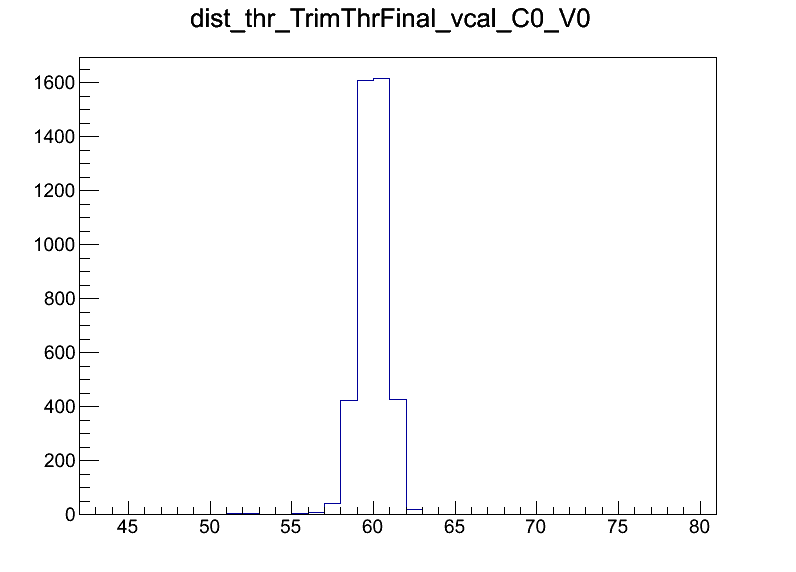

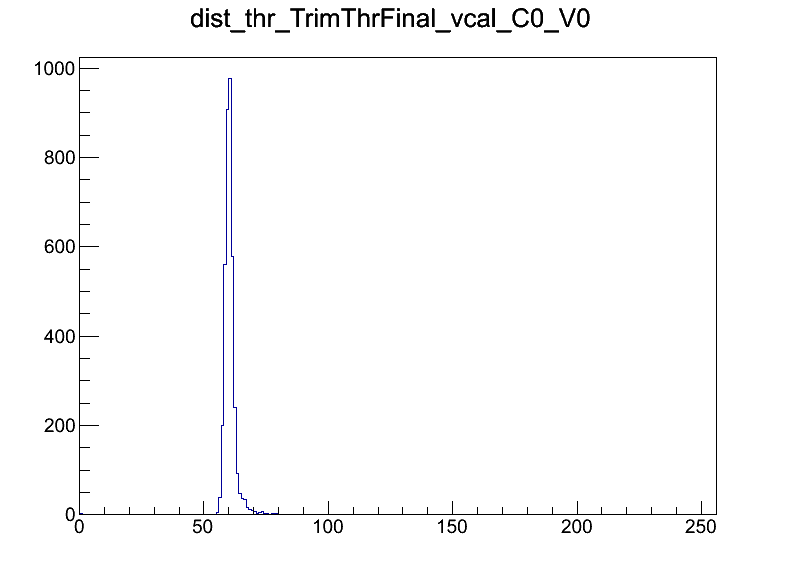

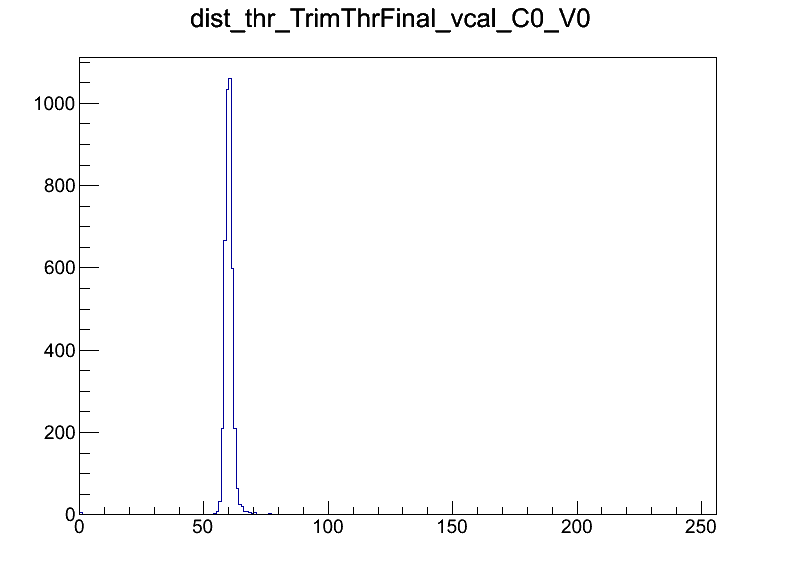

Plane	Summary	Pixel Alive Map	Adress Decoding	Vcal Threshold Trimmed	IV scan	Hitmap
18005	Status : Grade: A Pixels: Dead: 9 Critical dead: 0 Inefficient: 1 Summary Parameters: Vana: 149 CalDel: 61 Vthr: 81 (DAC units)
18008	Status : Grade: A Pixels: Dead: 24 Critical dead: 0 Inefficient: 0 Summary Parameters: Vana: 171 CalDel: 69 Vthr: 96 (DAC units)
18052	Status : Grade: A Pixels: Dead: 23 Critical dead: 0 Inefficient: 1 Summary Parameters: Vana: 144 CalDel: 77 Vthr: 117 (DAC units)
18054	Status : Grade: A Pixels: Dead: 28 Critical dead: 0 Inefficient: 2 Summary Parameters: Vana: 158 CalDel: 67 Vthr: 122 (DAC units)

Grade B:

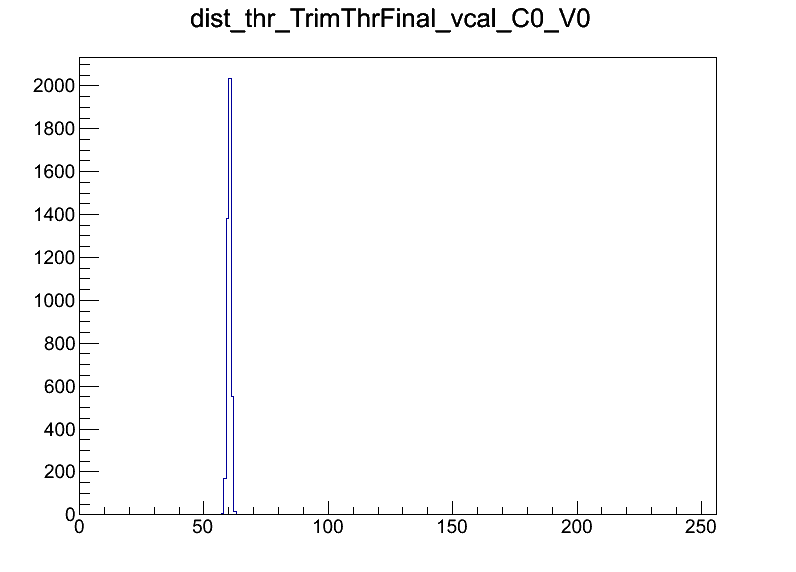

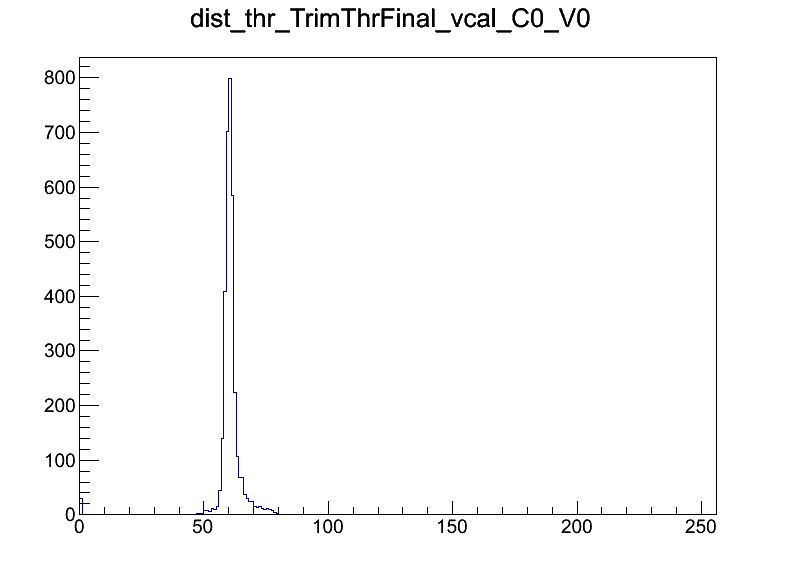

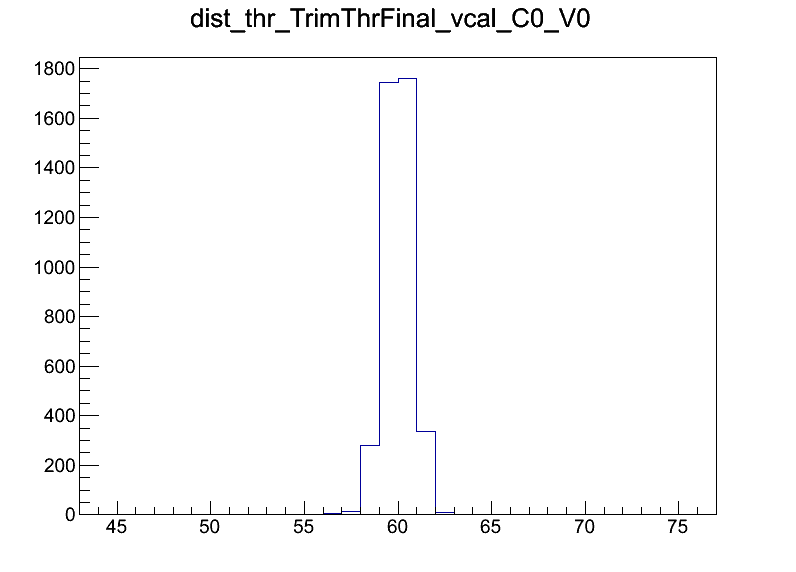

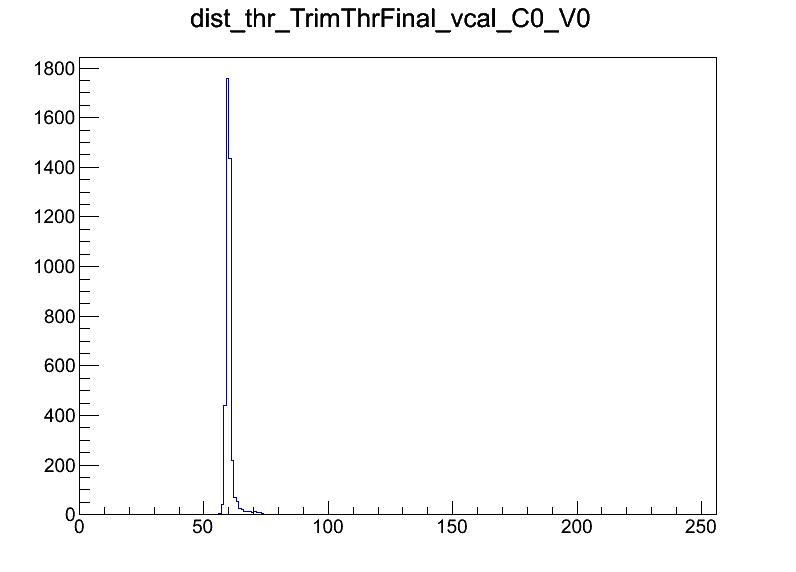

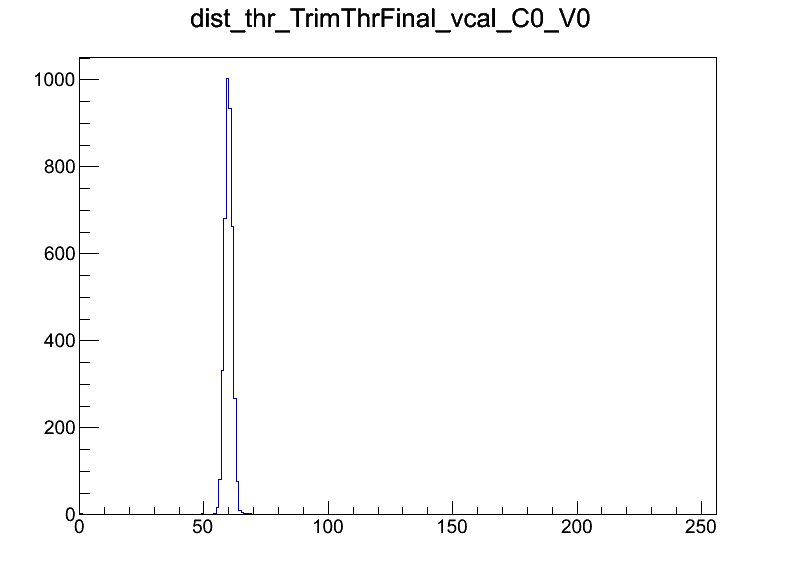

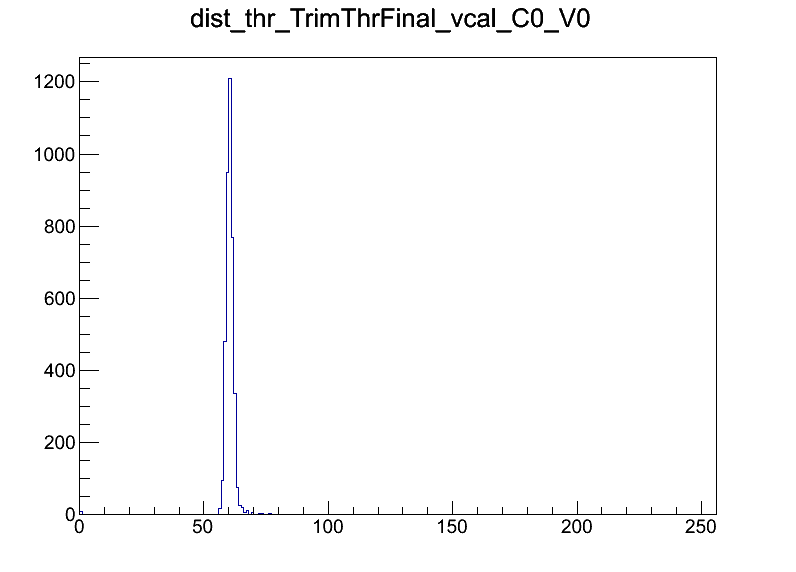

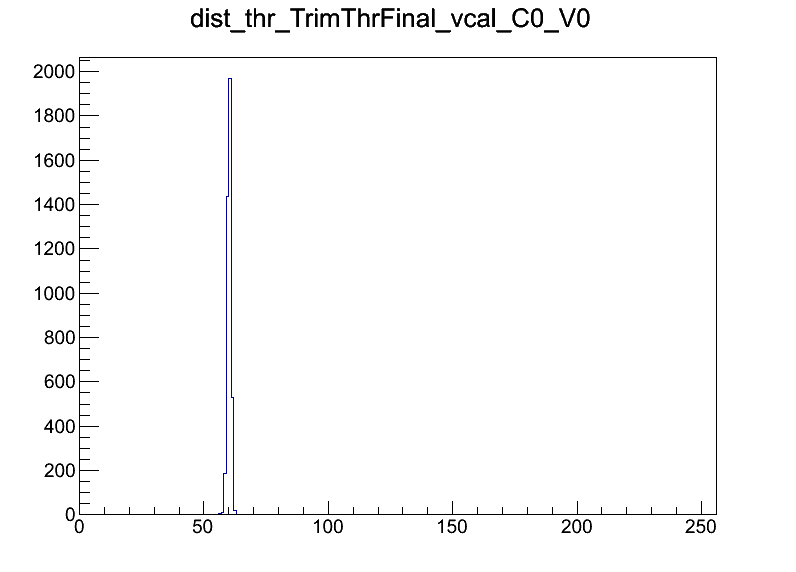

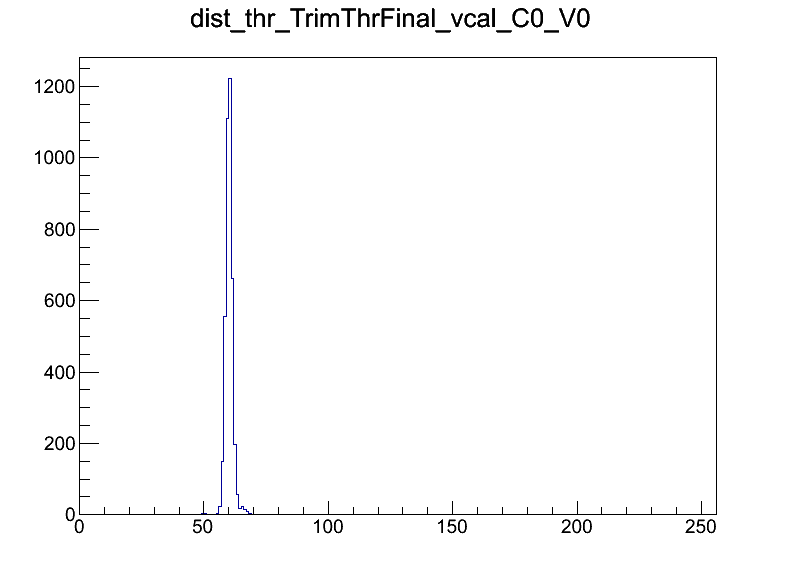

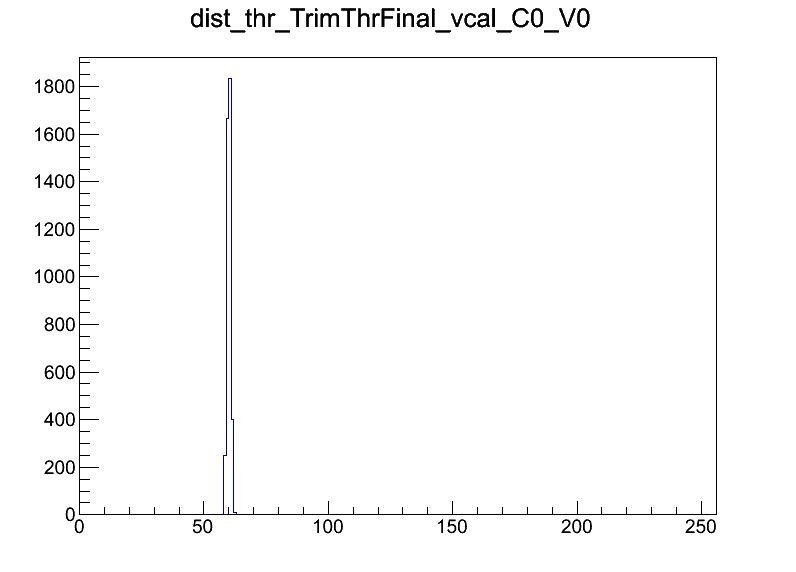

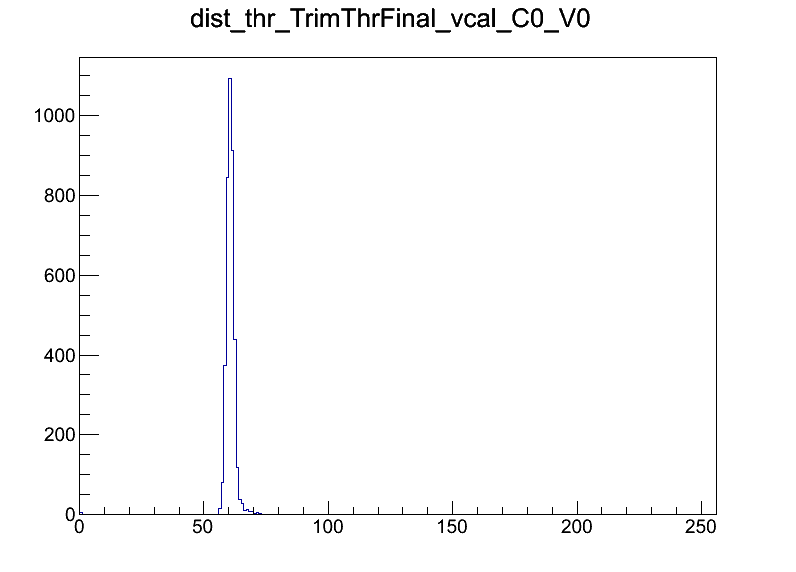

Plane	Summary	Pixel Alive Map	Adress Decoding	Vcal Threshold Trimmed	IV scan	Hitmap
18003	Status : Grade: B Pixels: Dead: 4 Critical dead: 0 Inefficient: 4 Summary Parameters: Vana: 161 CalDel: 68 Vthr: 66 (DAC units)
18010	Status : Grade: B Pixels: Dead: 28 Critical dead: 0 Inefficient: 1 Summary Parameters: Vana: 158 CalDel: 75 Vthr: 85 (DAC units)
18017	Status : Grade: B Pixels: Dead: 11 Critical dead: 0 Inefficient: 1 Summary Parameters: Vana: 134 CalDel: 79 Vthr: 51 (DAC units)
18018	Status : Grade: B Pixels: Dead: 11 Critical dead: 0 Inefficient: 2 Summary Parameters: Vana: 134 CalDel: 57 Vthr: 74 (DAC units)
18023	Status : Grade: B Pixels: Dead:4 Critical dead: 0 Inefficient: 0 Summary Parameters: Vana: 160 CalDel: 62 Vthr: 83 (DAC units)
18028	Status : Grade: B Pixels: Dead: 2 Critical dead: 0 Inefficient: 3 Summary Parameters: Vana: 144 CalDel: 76 Vthr: 83 (DAC units)
18029	Status : Grade: B Pixels: Dead: 1 Critical dead: 0 Inefficient: 3 Summary Parameters: Vana: 146 CalDel: 74 Vthr: 51 (DAC units)
18034	Status : Grade: B Pixels: Dead: 112 Critical dead: 0 Inefficient: 1 Summary Parameters: Vana: 153 CalDel: 64 Vthr: 119 (DAC units)
18042	Status : Grade: B Pixels: Dead: 98 Critical dead: 0 Inefficient: 1 Summary Parameters: Vana: 150 CalDel: 50 Vthr: 117 (DAC units)
18051	Status : Grade: B Pixels: Dead: 71 Critical dead: 0 Inefficient: 1 Summary Parameters: Vana: 144 CalDel: 69 Vthr: 109 (DAC units)
18053	Status : Grade: B Pixels: Dead: 29 Critical dead: 0 Inefficient: 0 Summary Parameters: Vana: 135 CalDel: 69 Vthr: 117 (DAC units)
18057	Status : Grade: B Pixels: Dead: 12 Critical dead: 0 Inefficient: 0 Summary Parameters: Vana: 158 CalDel: 62 Vthr: 122 (DAC units)
18058	Status : Grade: B Pixels: Dead: 25 Critical dead: 0 Inefficient: 0 Summary Parameters: Vana: 161 CalDel: 67 Vthr: 115 (DAC units)

Grade C:

Plane	Summary	Pixel Alive Map	Adress Decoding	Vcal Threshold Trimmed	IV scan	Hitmap
18004	Status : Grade: C Pixels: Dead: 16 Critical dead: 1 Inefficient: 0 Summary Parameters: Vana: 134 CalDel: 70 Vthr: 69 (DAC units)
18007	Status : Grade: C Pixels: Dead: 14 Critical dead: 1 Inefficient: 1 Summary Parameters: Vana: 146 CalDel: 64 Vthr: 95 (DAC units)
18011	Status : Grade: C Pixels: Dead: 190 Critical dead: 0 Inefficient: 2 Summary Parameters: Vana: 149 CalDel: 63 Vthr: 74 (DAC units)
18012	Status : Grade: C Pixels: Dead: 37 Critical dead: 1 Inefficient: 1 Summary Parameters: Vana: 149 CalDel: 69 Vthr: 53 (DAC units)
18019	Status : Grade: C Pixels: Dead: 18 Critical dead: 0 Inefficient: 20 Summary Parameters: Vana: 164 CalDel: 69 Vthr: 75 (DAC units)
18022	Status : Grade: C Pixels: Dead: 13 Critical dead: 1 Inefficient: 0 Summary Parameters: Vana: 142 CalDel: 67 Vthr: 89 (DAC units)
18026	Status : Grade: C Pixels: Dead: 3 Critical dead: 0 Inefficient: 0 Summary Parameters: Vana: 146 CalDel: 70 Vthr: 51 (DAC units)
18031	Status : Grade: C Pixels: Dead: 5 Critical dead: 0 Inefficient: 0 Summary Parameters: Vana: 156 CalDel: 56 Vthr: 120 (DAC units)
18032	Status : Grade: C Pixels: Dead: 33 Critical dead: 0 Inefficient: 1 Summary Parameters: Vana: 147 CalDel: 51 Vthr: 118 (DAC units)
18033	Status : Grade: C Pixels: Dead: 8 Critical dead: 0 Inefficient: 1 Summary Parameters: Vana: 132 CalDel: 59 Vthr: 104 (DAC units)
18035	Status : Grade: C Pixels: Dead: 1 Critical dead: 0 Inefficient: 2 Summary Parameters: Vana: 142 CalDel: 68 Vthr: 118 (DAC units)
18036	Status : Grade: C Pixels: Dead: 74 Critical dead: 0 Inefficient: 0 Summary Parameters: Vana: 155 CalDel: 67 Vthr: 127 (DAC units)
18037	Status : Grade: C Pixels: Dead: 2 Critical dead: 0 Inefficient: 0 Summary Parameters: Vana: 159 CalDel: 67 Vthr: 125 (DAC units)
18040	Status : Grade: C Pixels: Dead: 26 Critical dead: 1 Inefficient: 0 Summary Parameters: Vana: 149 CalDel: 65 Vthr: 111 (DAC units)
18043	Status : Grade: C Pixels: Dead: 27 Critical dead: 2 Inefficient: 1 Summary Parameters: Vana: 150 CalDel: 65 Vthr: 115 (DAC units)
18045	Status : Grade: C Pixels: Dead: 8 Critical dead: 0 Inefficient: 0 Summary Parameters: Vana: 142 CalDel: 61 Vthr: 129 (DAC units)
18047	Status : Grade: C Pixels: Dead: 23 Critical dead: 2 Inefficient: 0 Summary Parameters: Vana: 142 CalDel: 80 Vthr: 113 (DAC units)
18048	Status : Grade: C Pixels: Dead: 94 Critical dead: 0 Inefficient: 0 Summary Parameters: Vana: 153 CalDel: 78 Vthr: 139 (DAC units)
18055	Status : Grade: C Pixels: Dead: 24 Critical dead: 2 Inefficient: 2 Summary Parameters: Vana: 150 CalDel: 73 Vthr: 112 (DAC units)
18056	Status : Grade: C Pixels: Dead: 30 Critical dead: 0 Inefficient: 0 Summary Parameters: Vana: 165 CalDel: 76 Vthr: 129 (DAC units)
