Analysis Summary

Index
Good chips
>>> Bad chips

Electrical problems:

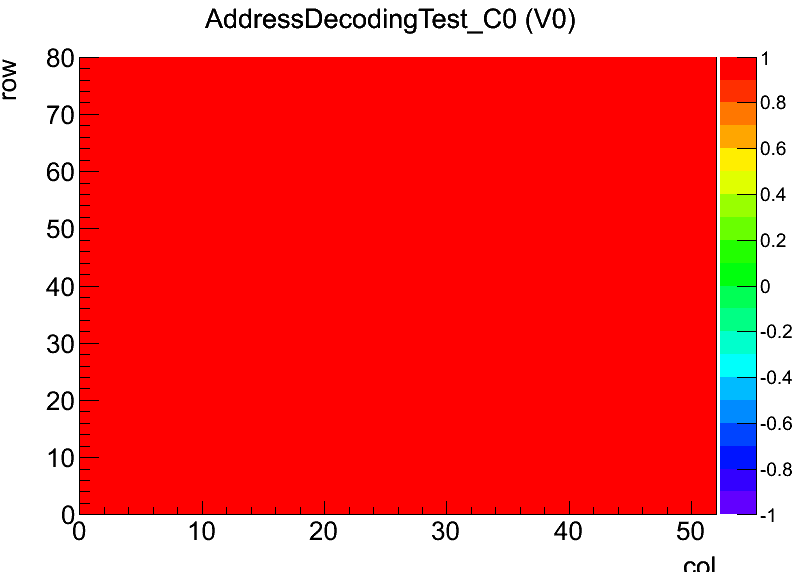

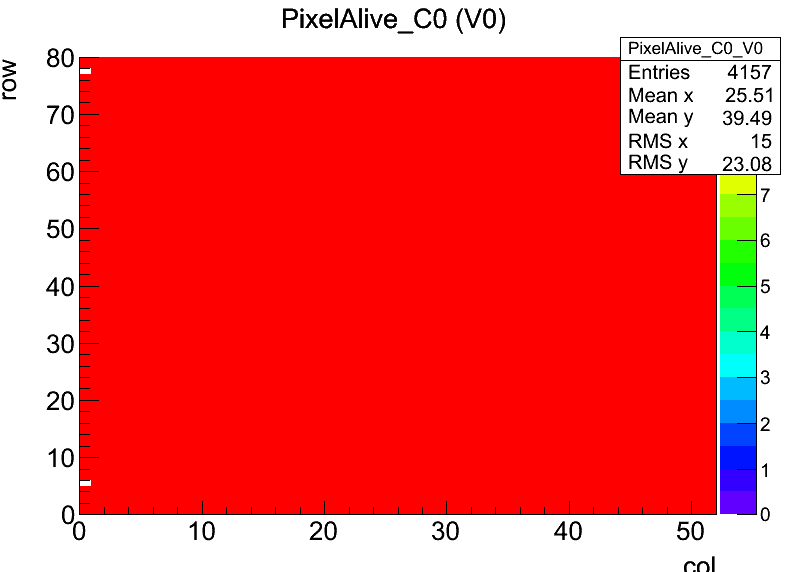

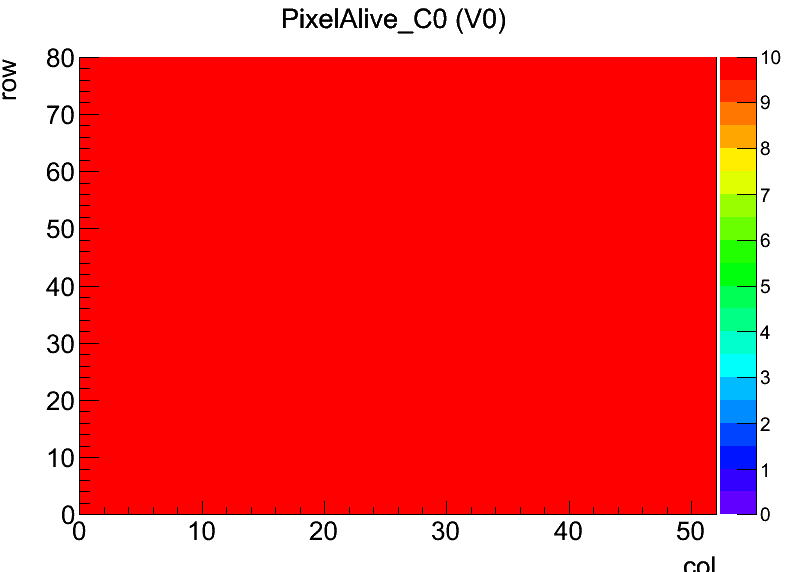

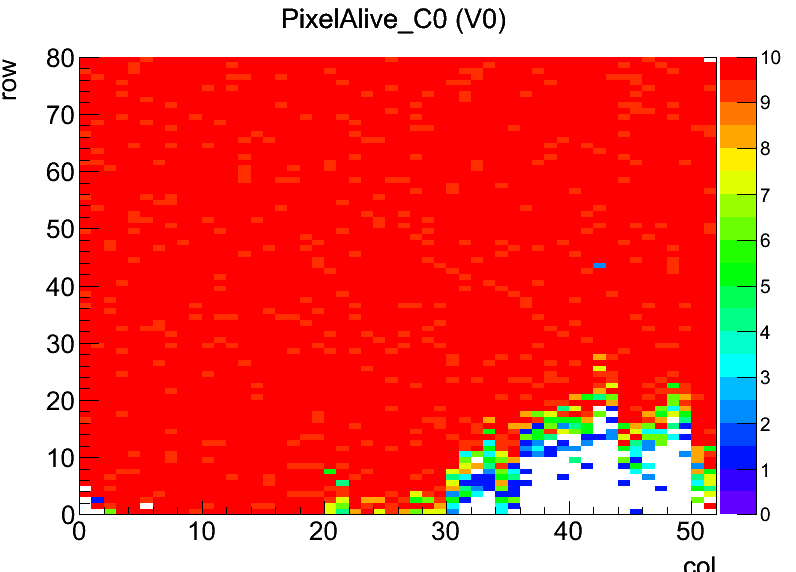

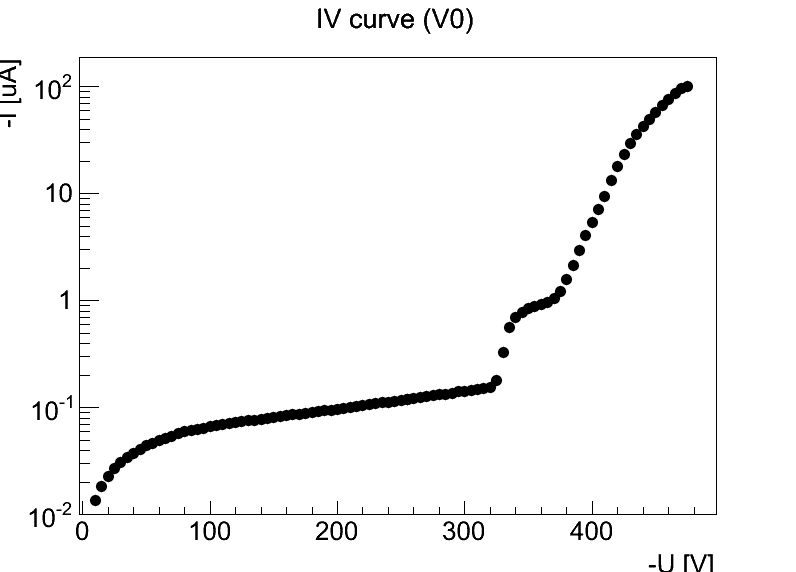

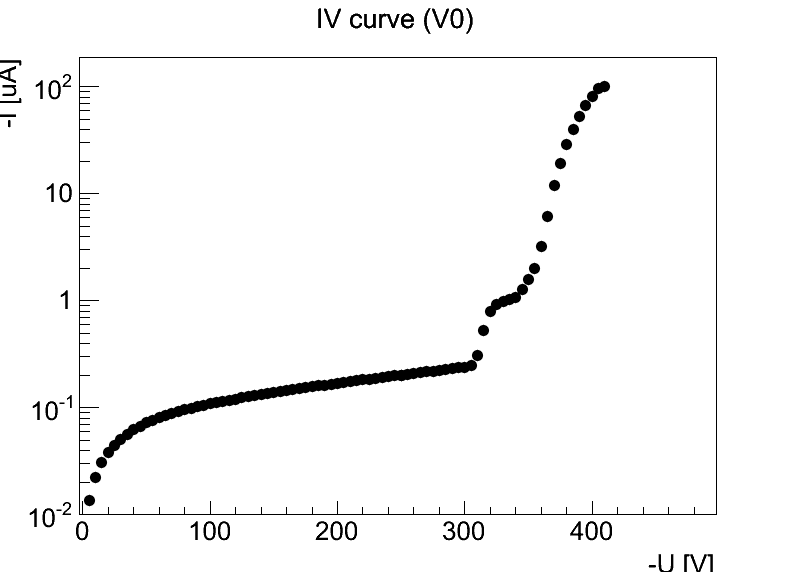

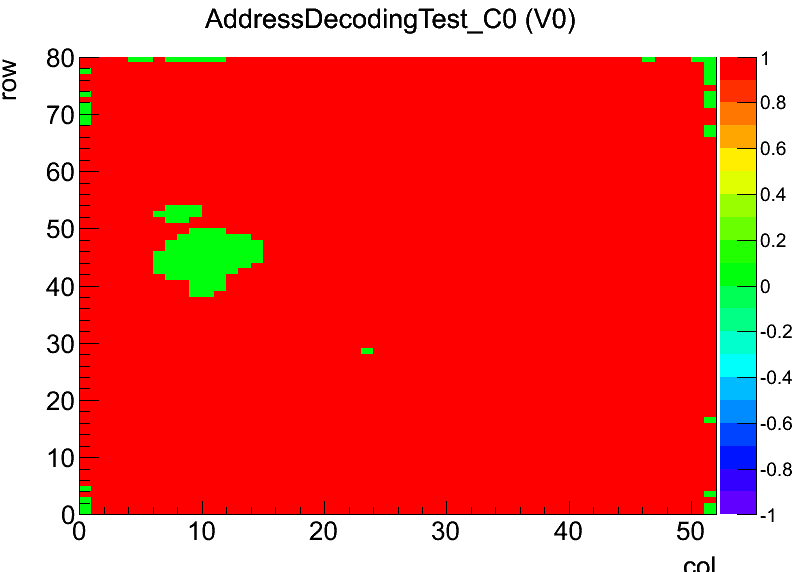

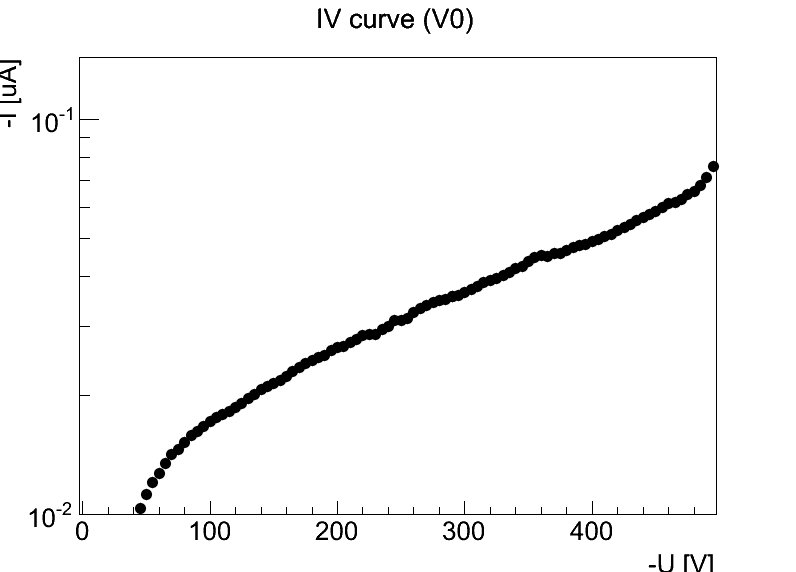

Plane	Summary	Pixel Alive Map	Adress Decoding	IV scan

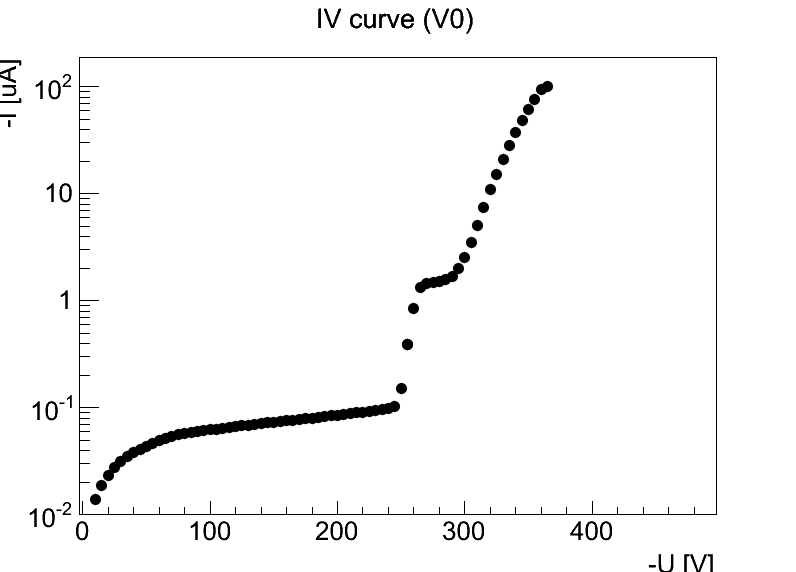

Nº18016	Status : Grade: BAD Pixels: Inefficient: 322 Summary Parameters: Vana: 144 CalDel: 74 Vthr: 67 (DAC units)

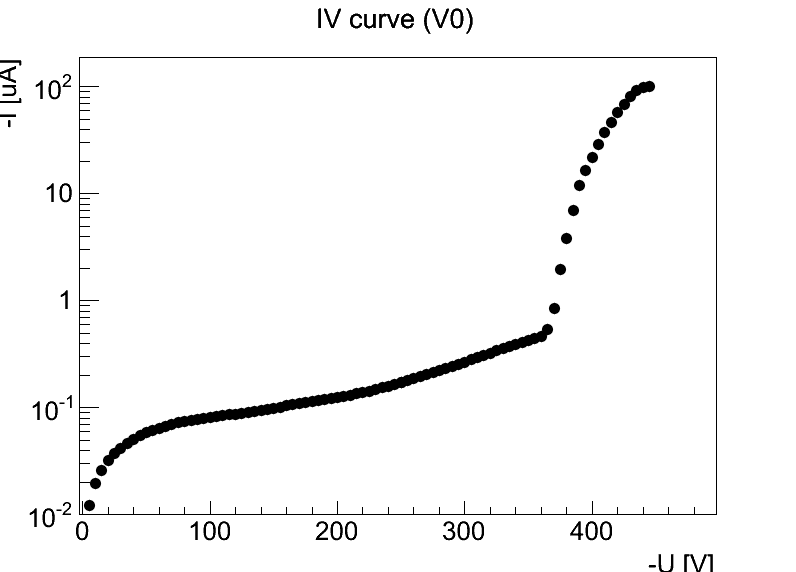

Nº18021	Status : Grade: BAD Pixels: Inefficient: 126 Summary Parameters: Vana: 169 CalDel: 62 Vthr: 55 (DAC units)

Bump-bond issues:

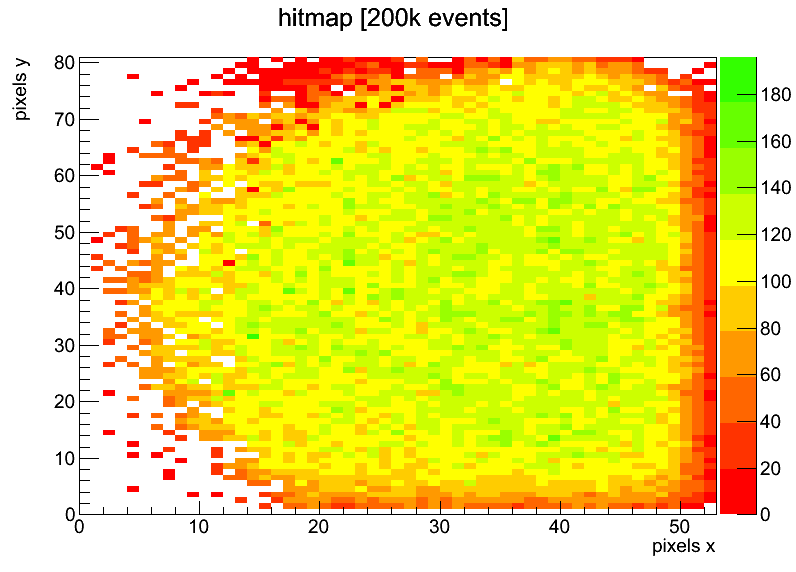

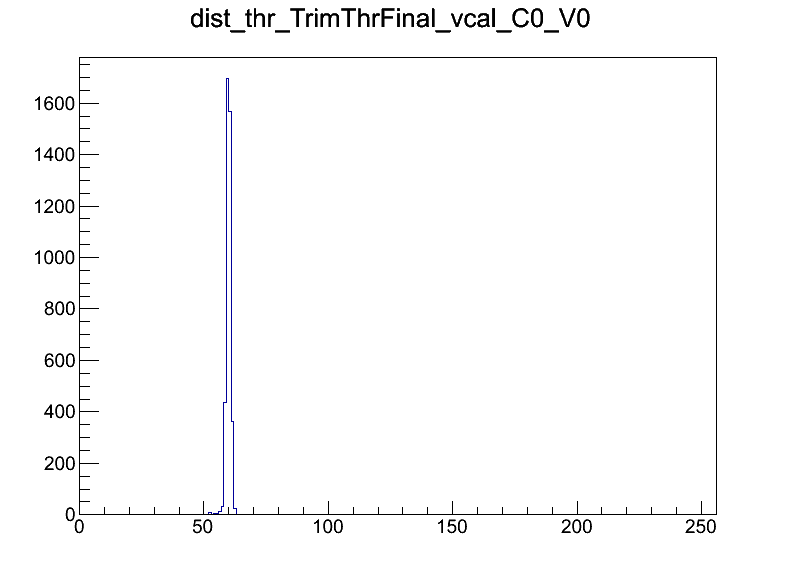

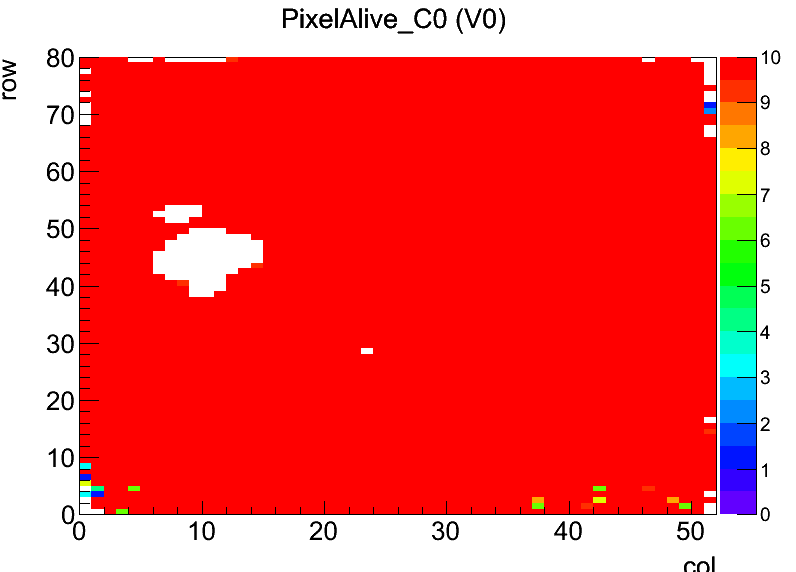

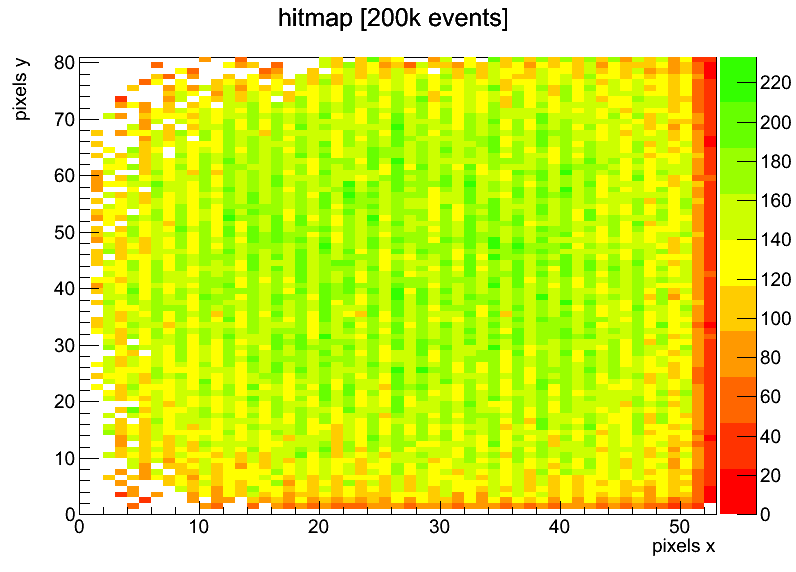

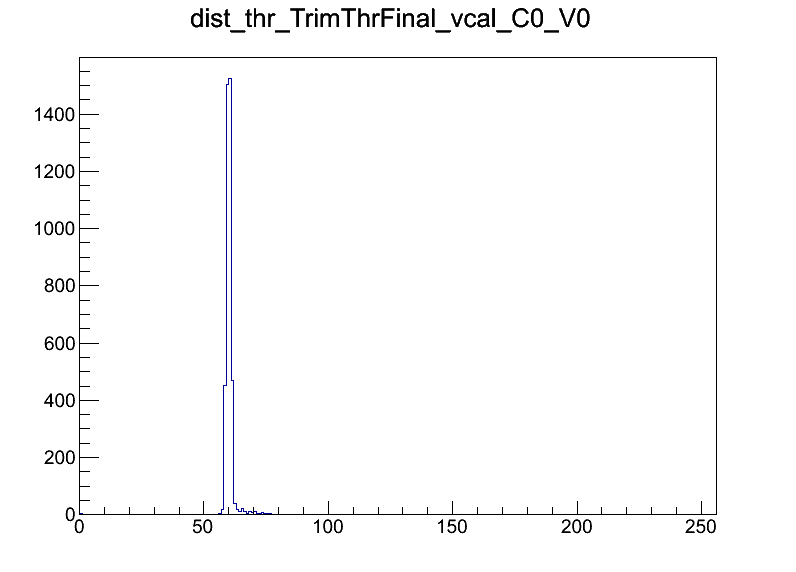

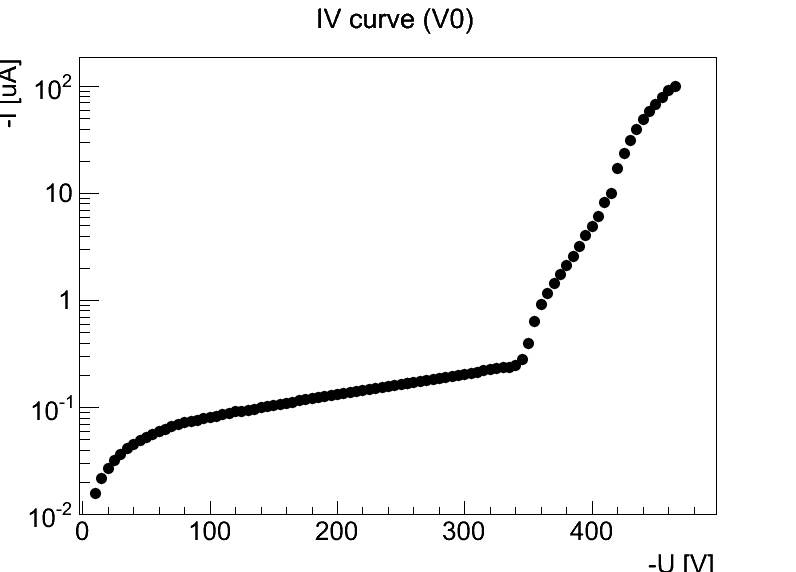

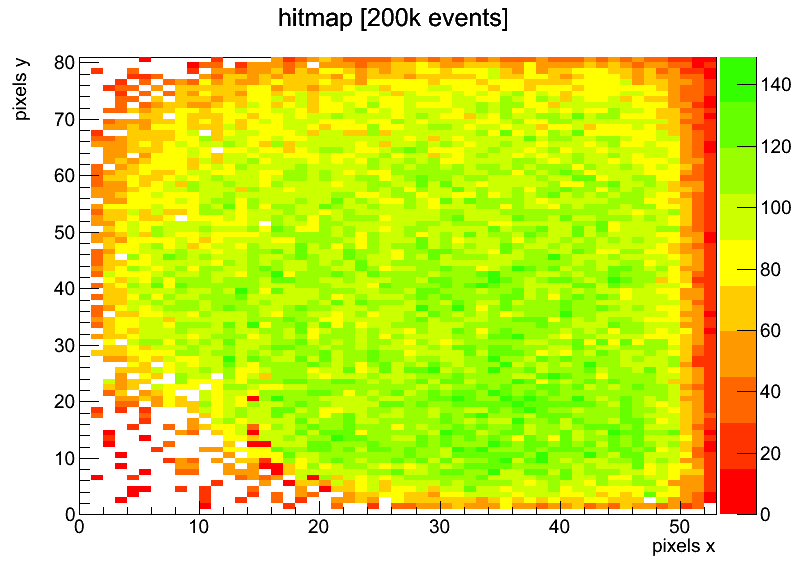

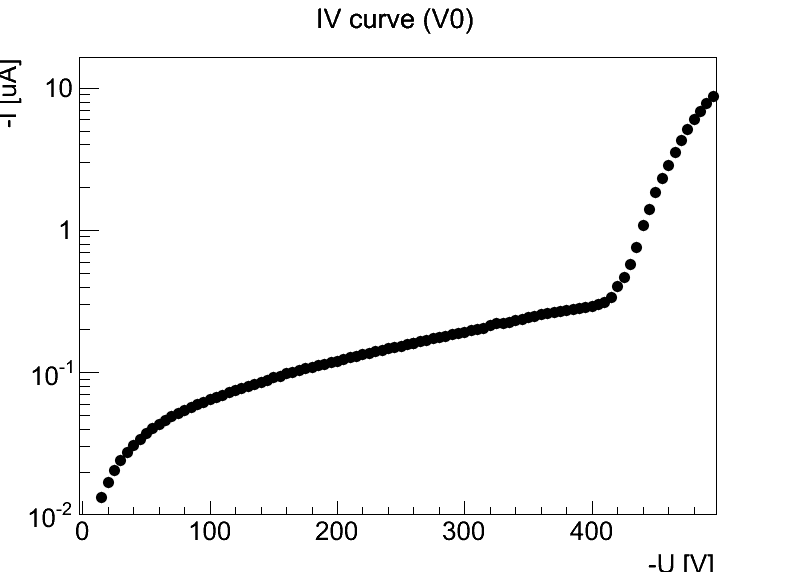

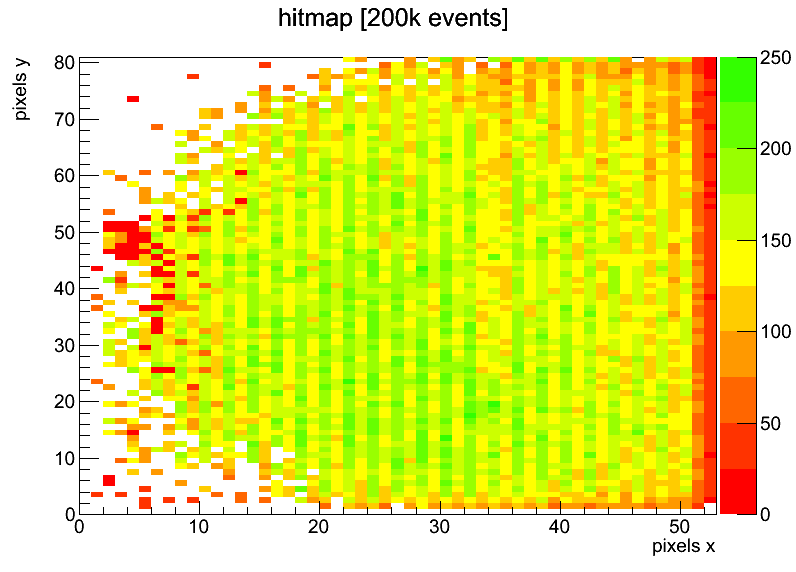

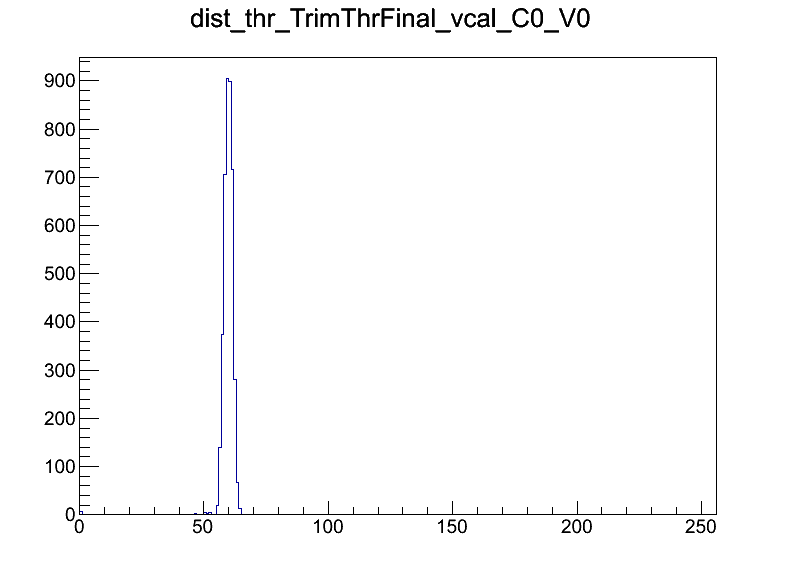

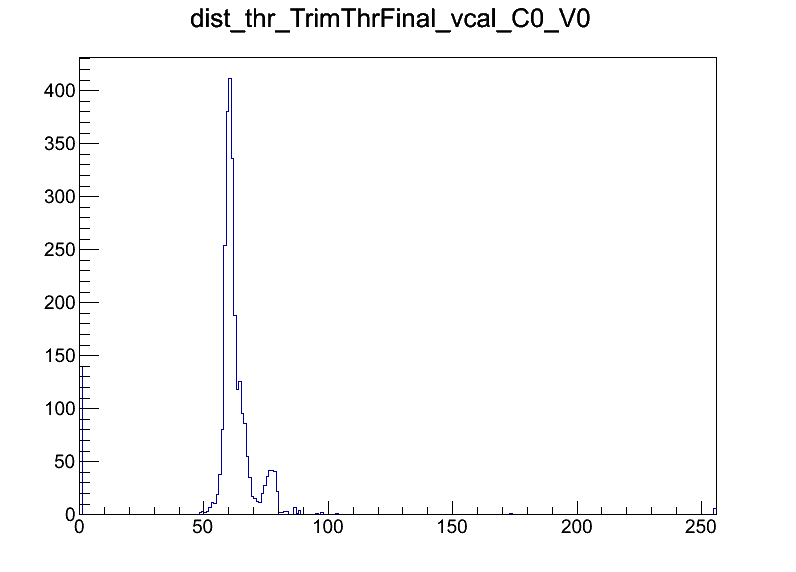

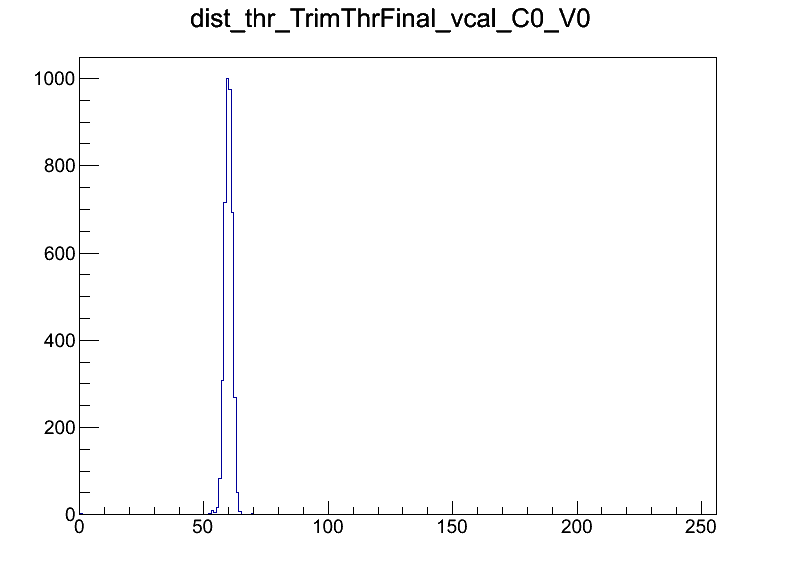

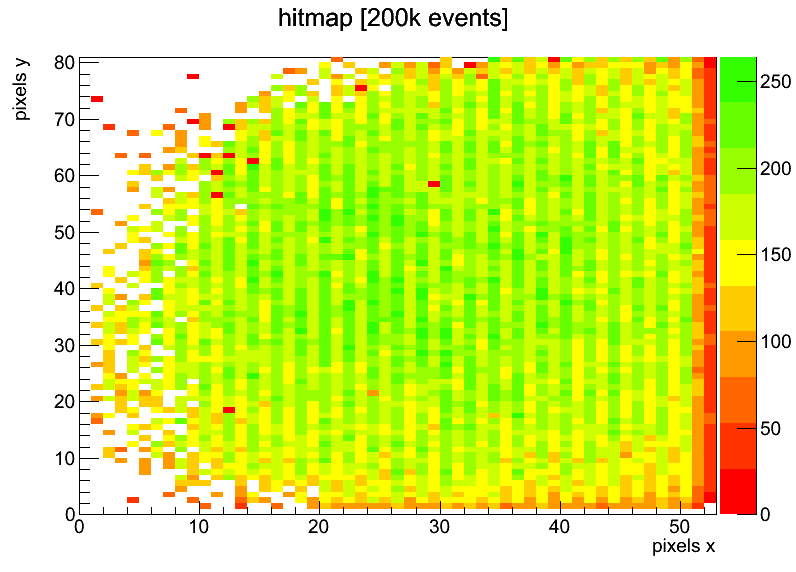

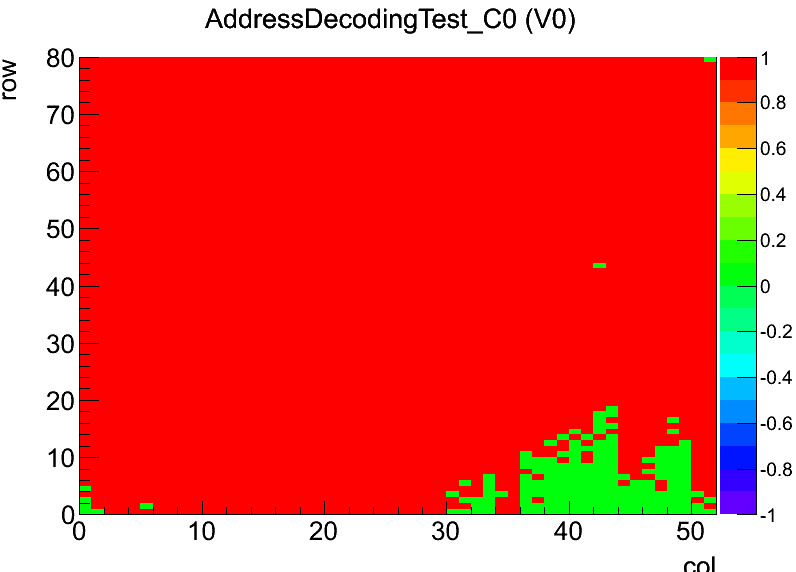

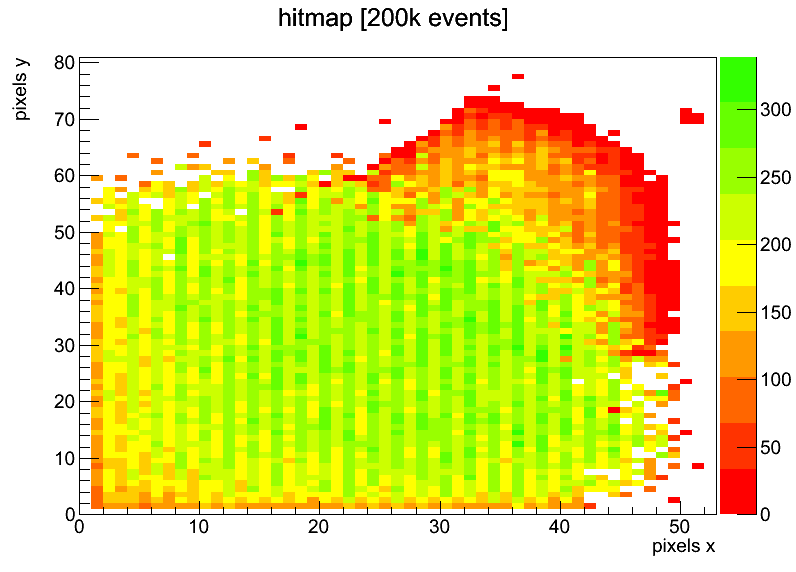

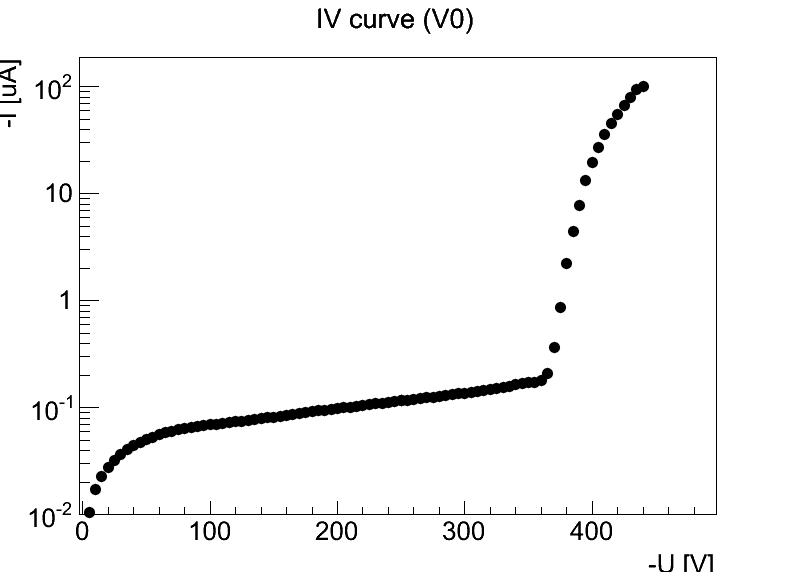

Plane	Summary	Pixel Alive Map	Adress Decoding	Vcal Threshold Trimmed	IV scan	Hitmap
Nº18001	Status : Grade: BAD Pixels: Dead: 232 Critical: 0 Inefficient: 0 Summary Parameters: Vana: 144 CalDel: 72 Vthr: 61 (DAC units)
Nº18014	Status : Grade: BAD Pixels: Dead: 557 Critical: 13 Inefficient: 0 Summary Parameters: Vana: 159 CalDel: 54 Vthr: 74 (DAC units)
Nº18015	Status : Grade: BAD Pixels: Dead: 605 Critical: 25 Inefficient: 0 Summary Parameters: Vana: 146 CalDel: 64 Vthr: 51 (DAC units)
Nº18038	Status : Grade: BAD Pixels: Dead: 1150 Critical: 168 Inefficient: 0 Summary Parameters: Vana: 176 CalDel: 60 Vthr: 123 (DAC units)
Nº18041	Status : Grade: BAD Pixels: Dead: 651 Critical: 36 Inefficient: 0 Summary Parameters: Vana: 153 CalDel: 77 Vthr: 139 (DAC units)
Nº18044	Status : Grade: C Pixels: Dead: 302 Critical: 6 Inefficient: 0 Summary Parameters: Vana: 142 CalDel: 85 Vthr: 118 (DAC units)
