Analysis Summary

Index
Good chips
>>> Bad chips

Electrical problems:

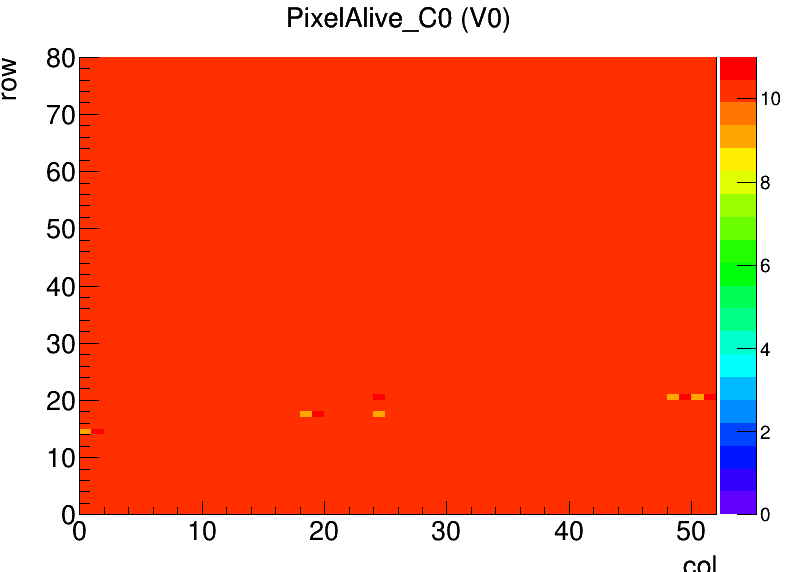

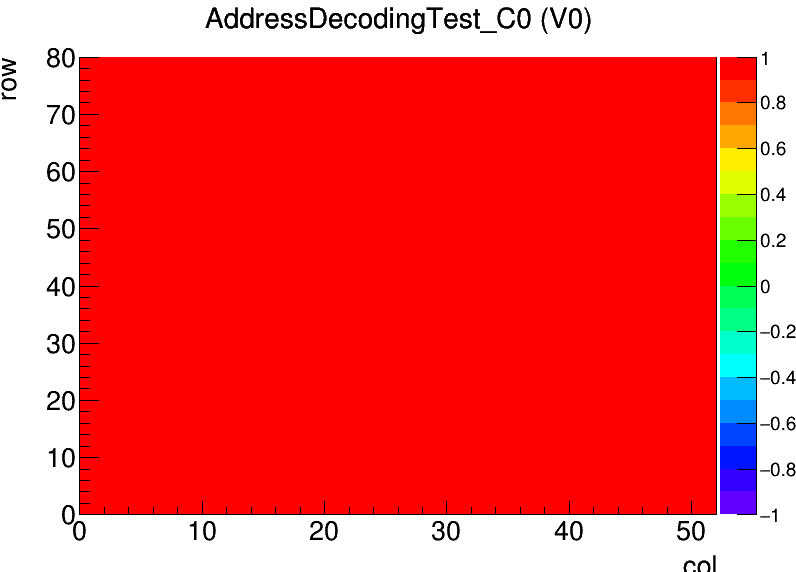

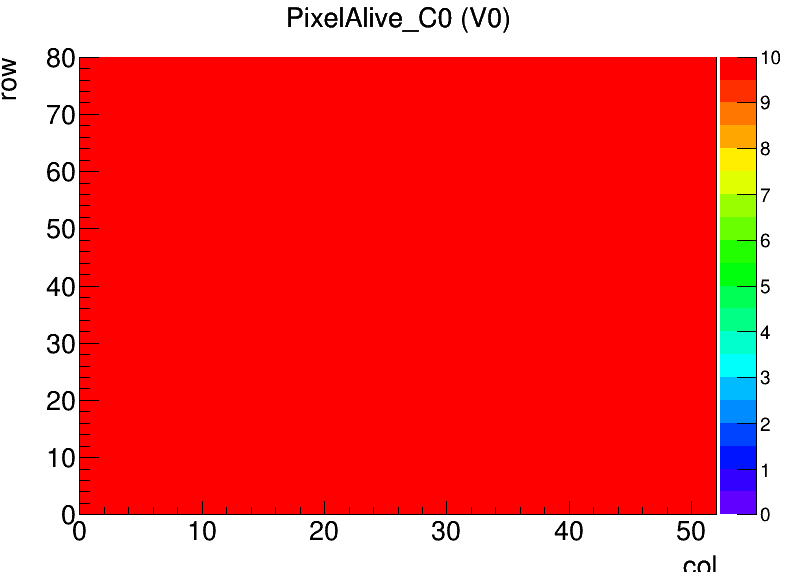

Plane	Summary	Pixel Alive Map	Adress Decoding
19078	Status : Grade: BAD Pixels: Inefficient: 126 Summary Parameters: Vana: 145 CalDel: 57 Vthr: 62 (DAC units)
20115	Status : Grade: BAD Pixels: Inefficient: 66 Summary Parameters: Vana: 175 CalDel: 96 Vthr: 89 (DAC units)

Bump-bond issues:

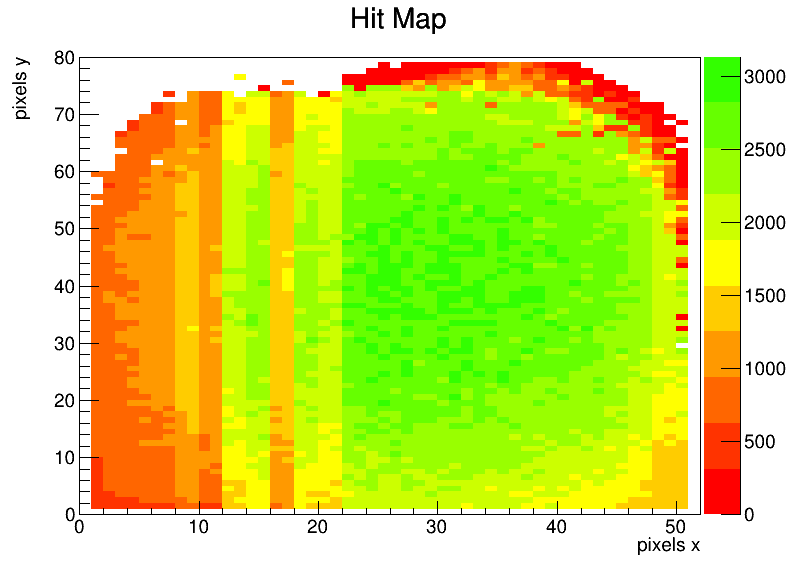

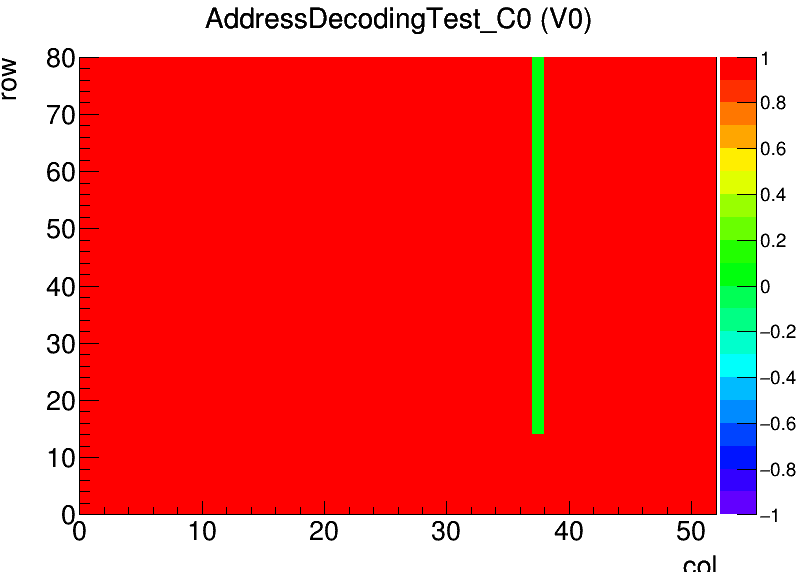

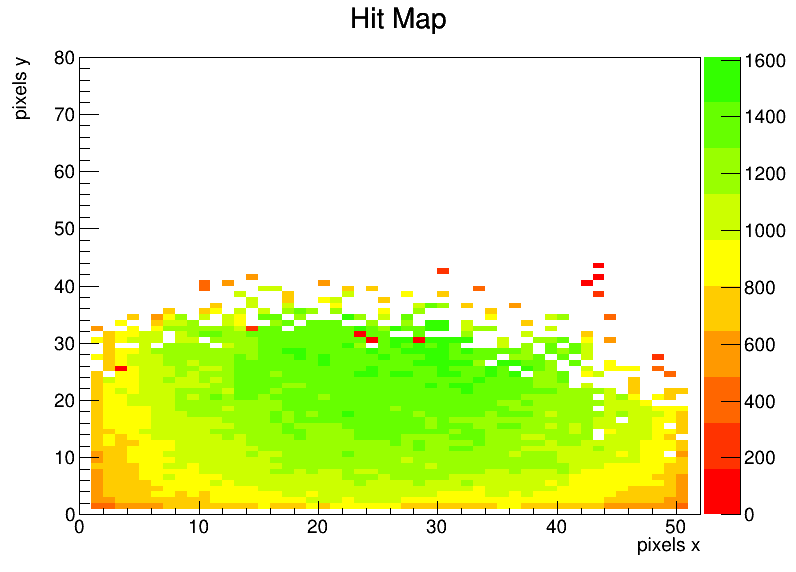

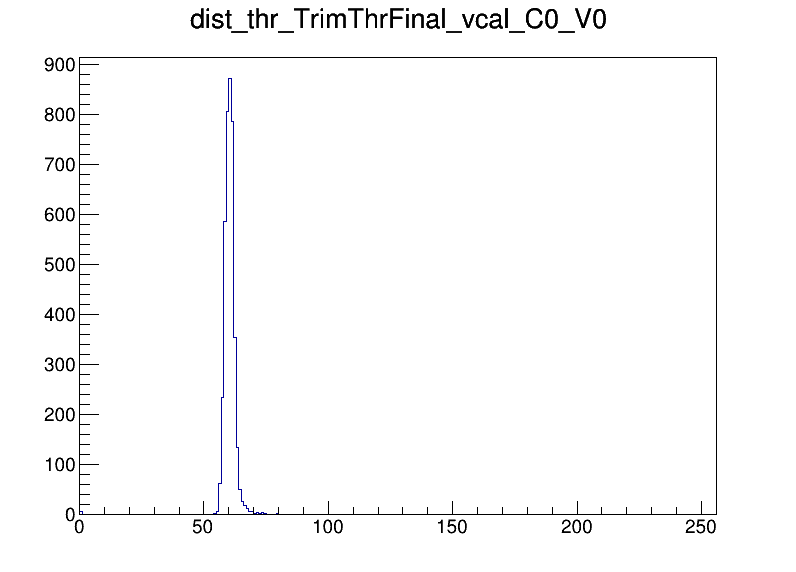

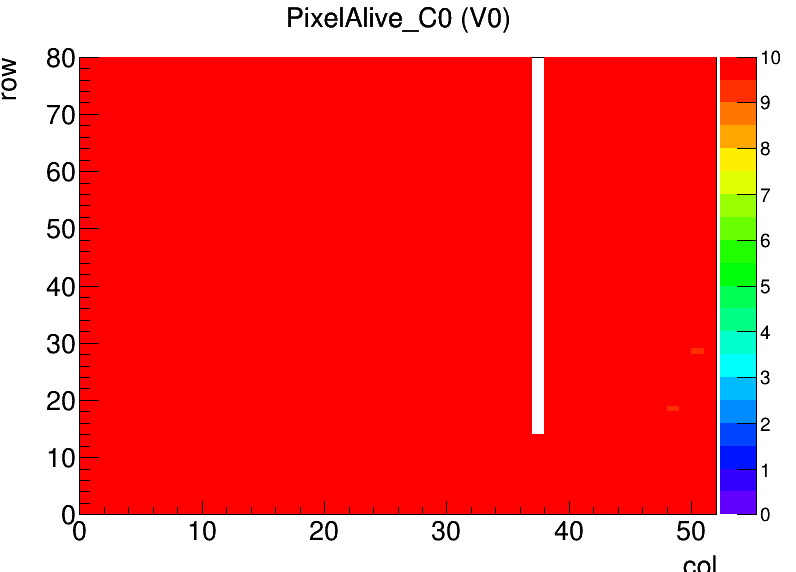

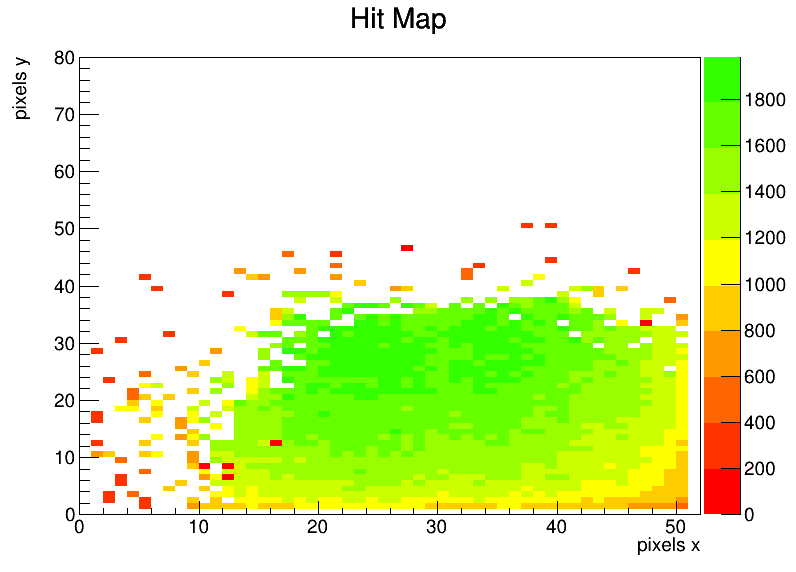

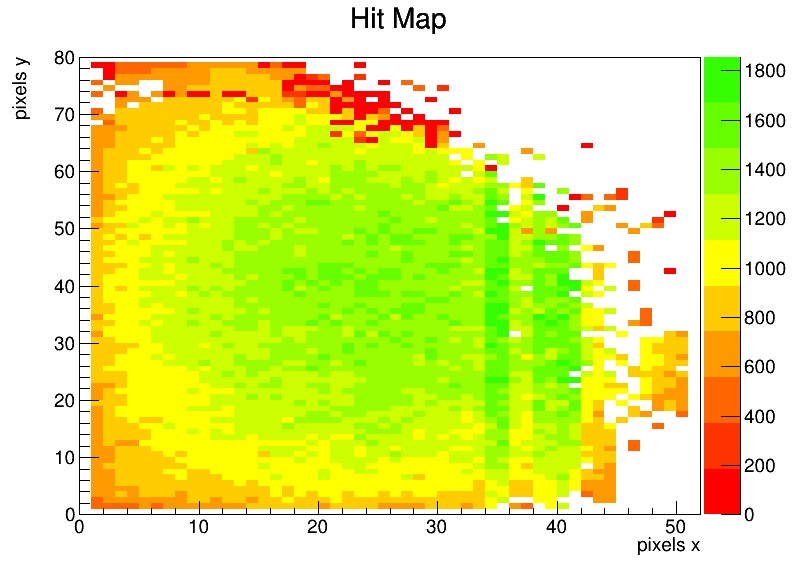

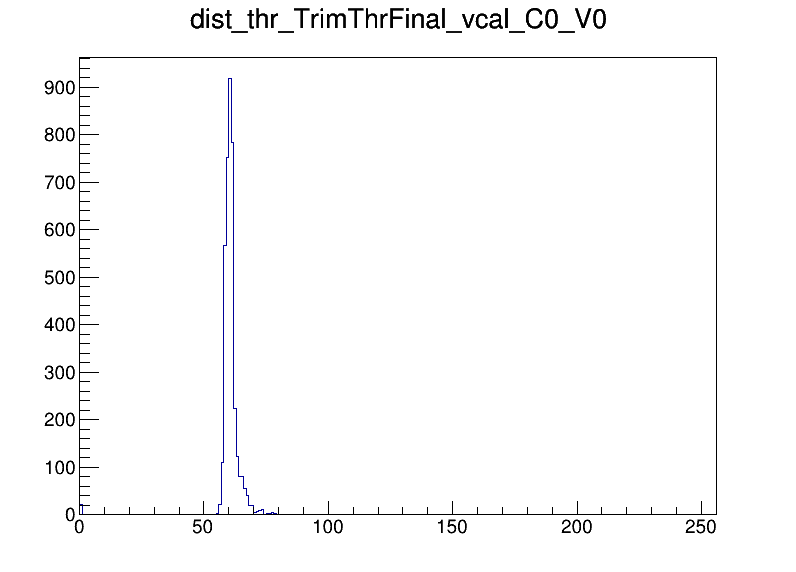

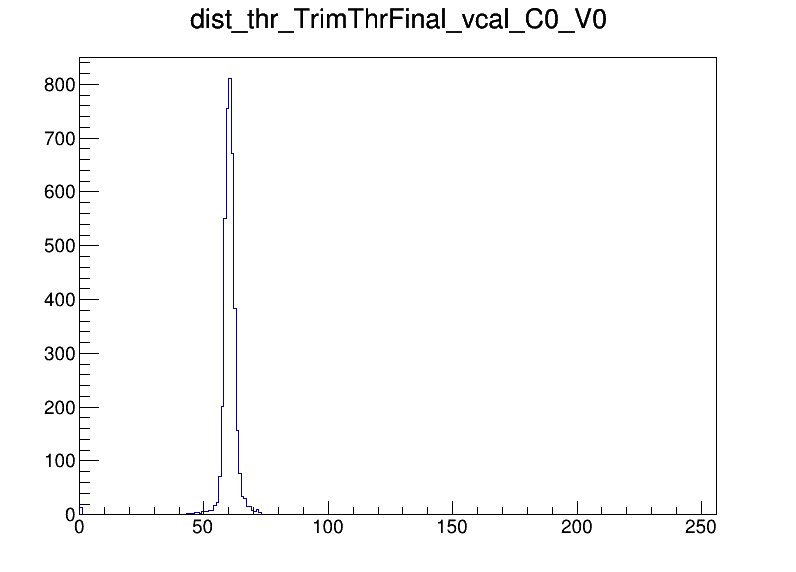

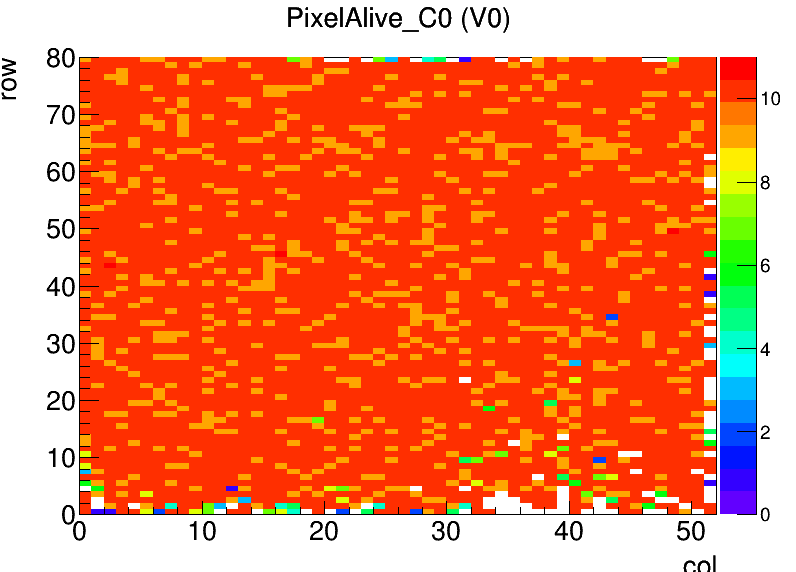

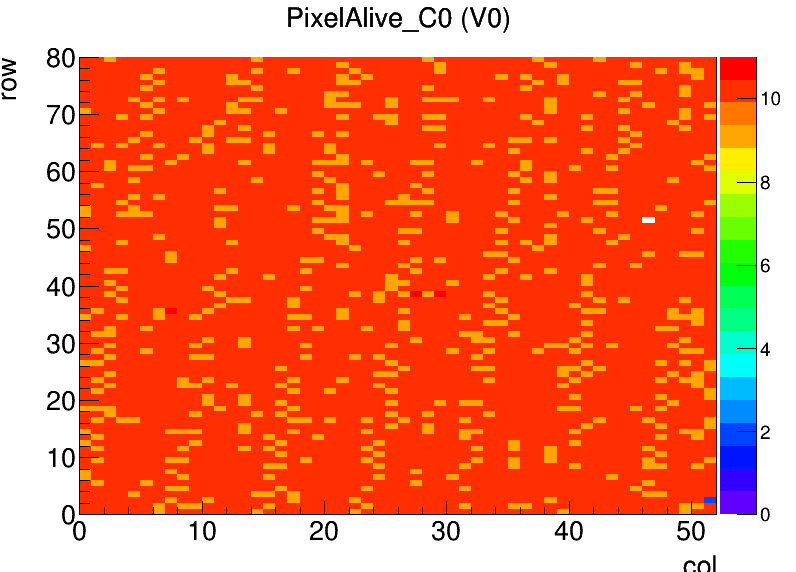

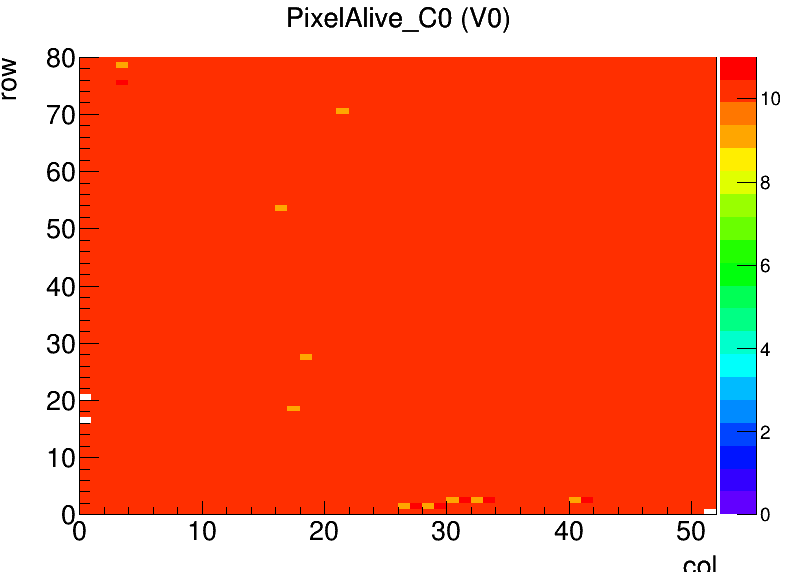

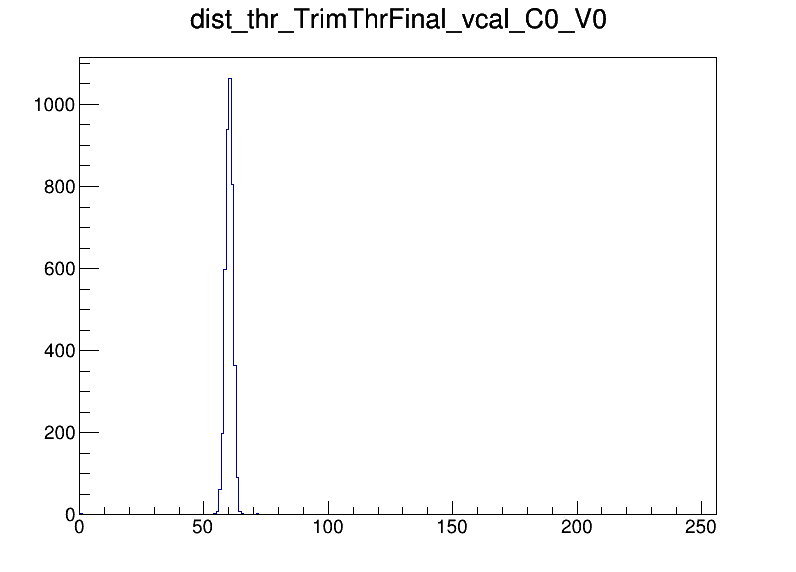

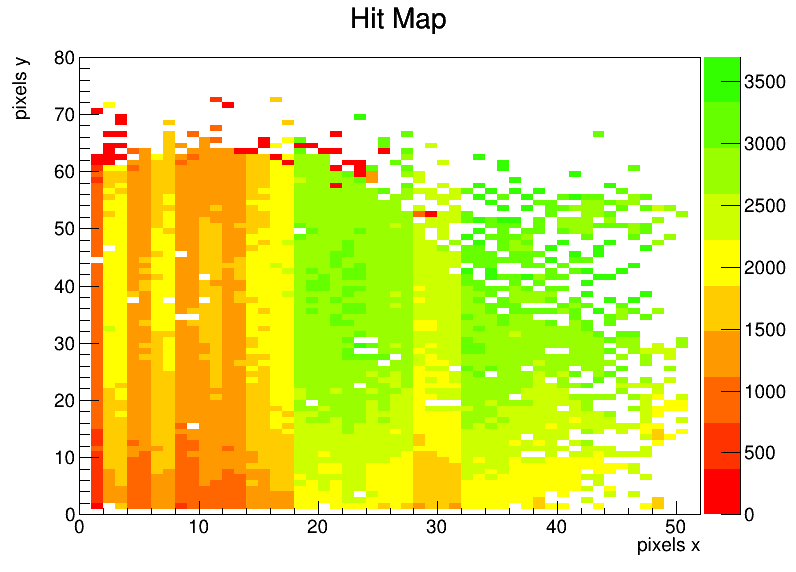

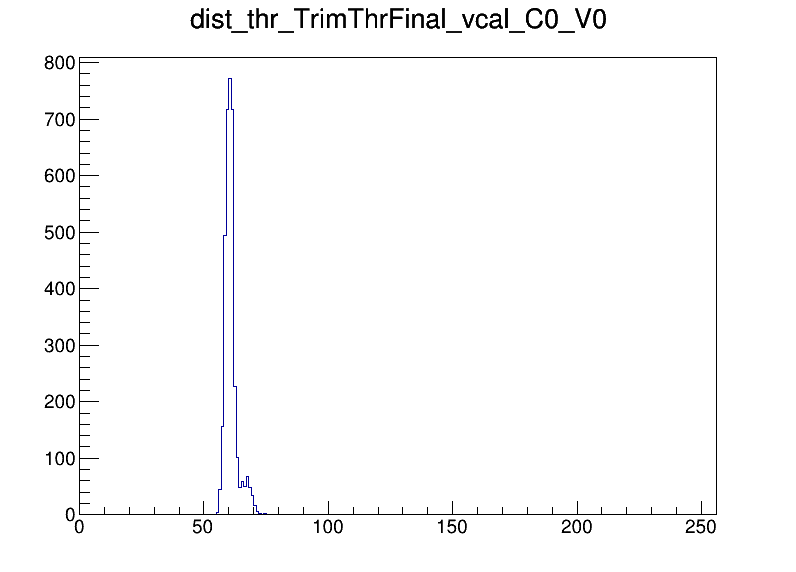

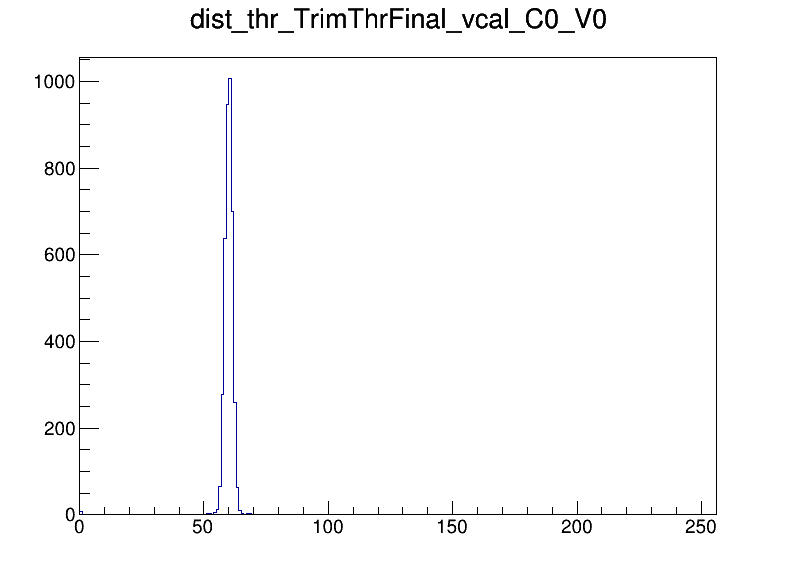

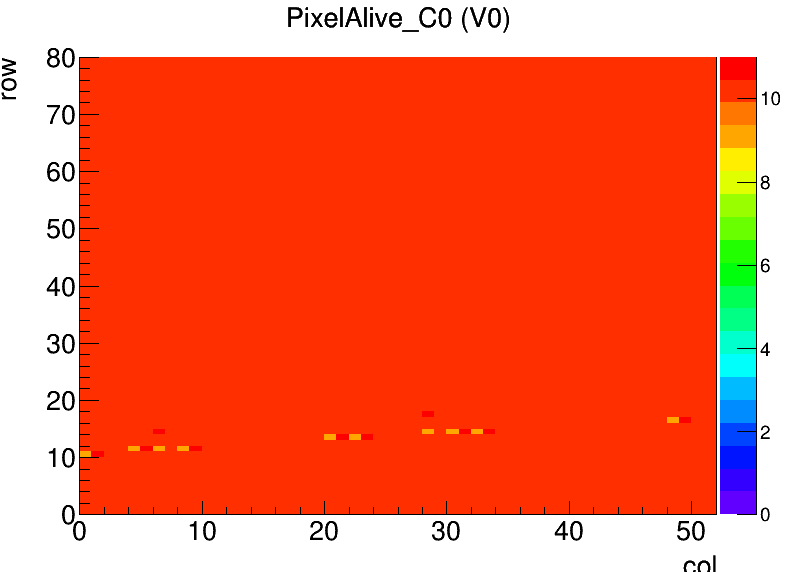

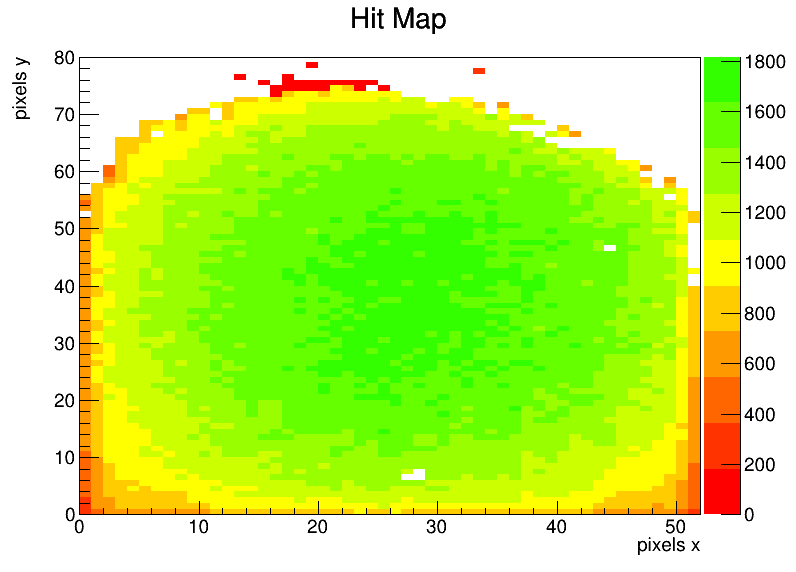

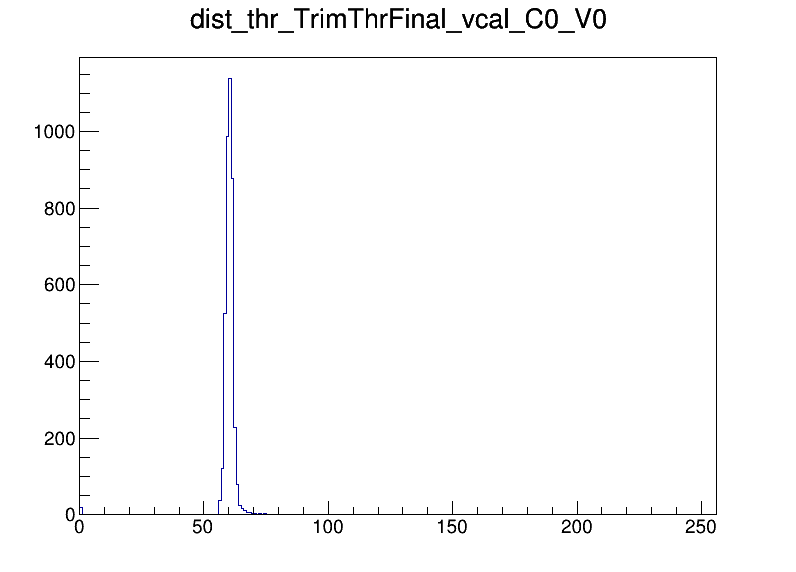

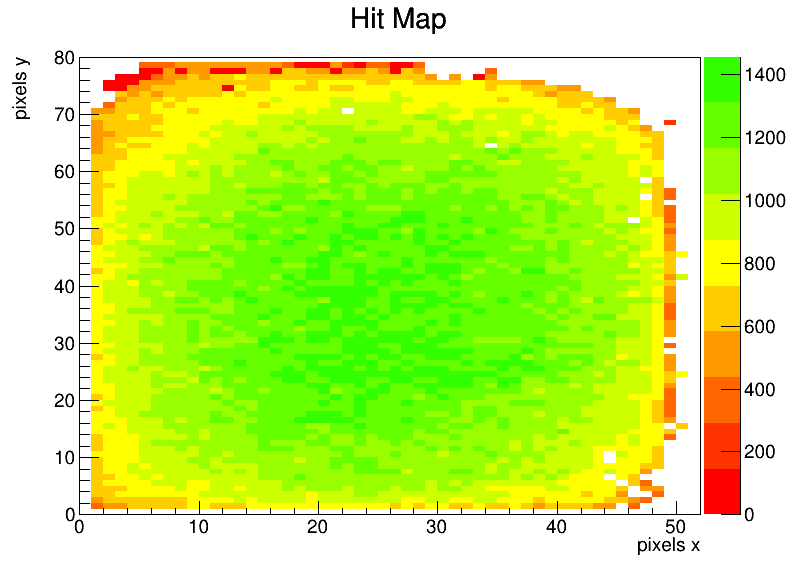

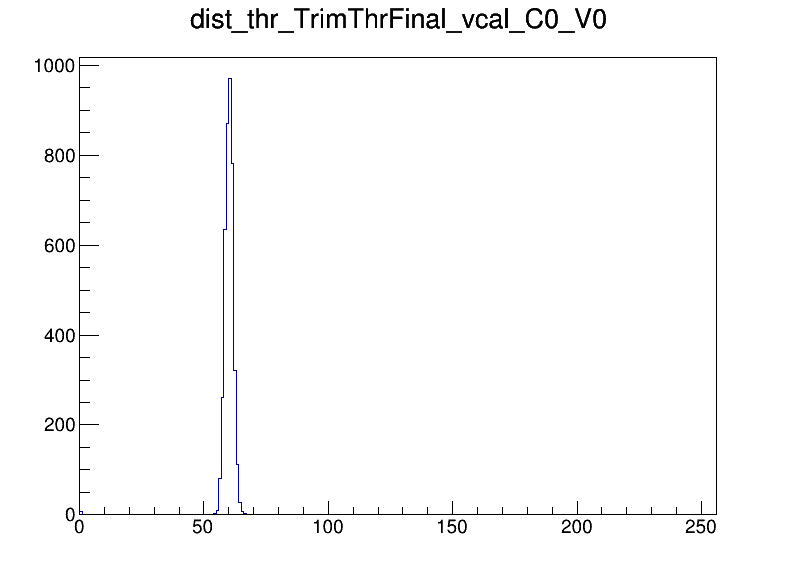

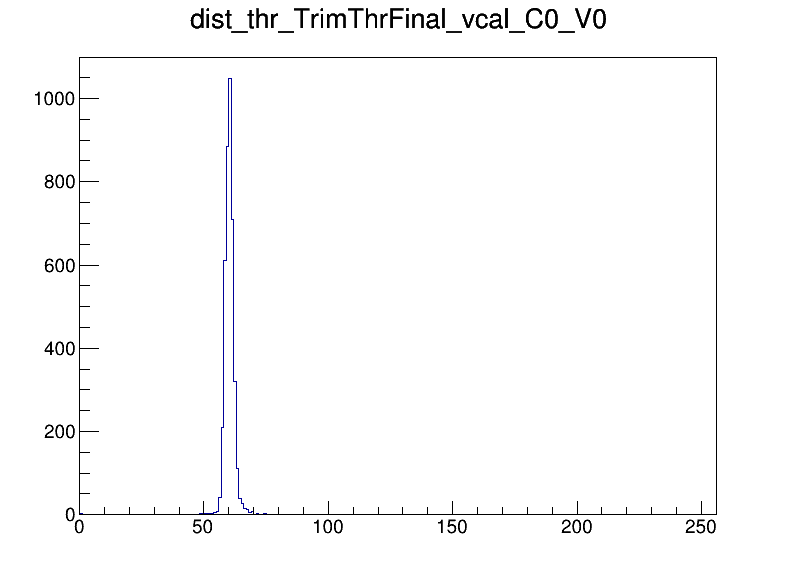

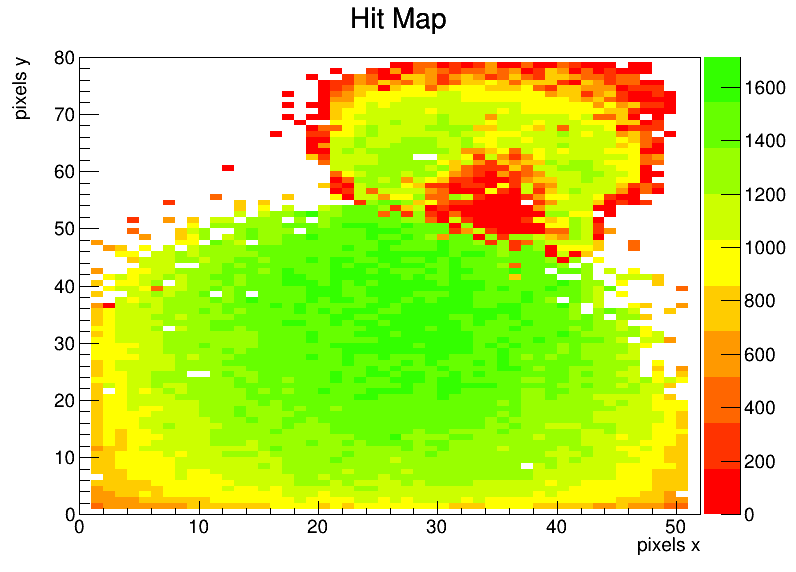

Plane	Summary	Pixel Alive Map	Adress Decoding	Vcal Threshold Trimmed	Hitmap
18062	Status : Grade: BAD Pixels: Dead: 218 Critical: 4 Inefficient: 0 Summary Parameters: Vana: 138 CalDel: 64 Vthr: 81 (DAC units)
18063	Status : Grade: BAD Pixels: Dead: 219 Critical: 0 Inefficient: 0 Summary Parameters: Vana: 133 CalDel: 67 Vthr: 76 (DAC units)
18065	Status : Grade: BAD Pixels: Dead: 241 Critical: 2 Inefficient: 1 Summary Parameters: Vana: 140 CalDel: 48 Vthr: 54 (DAC units)
18069	Status : Grade: BAD Pixels: Dead: 600 Critical: 34 Inefficient: 0 Summary Parameters: Vana: 145 CalDel: 69 Vthr: 84 (DAC units)
18076	Status : Grade: BAD Pixels: Dead: 843 Critical: 185 Inefficient: 2 Summary Parameters: Vana: 156 CalDel: 70 Vthr: 51 (DAC units)
18077	Status : Grade: BAD Pixels: Dead: 2376 Critical: 1202 Inefficient: 1 Summary Parameters: Vana: 143 CalDel: 72 Vthr: 54 (DAC units)
19079	Status : Grade: BAD Pixels: Dead: 2496 Critical: 1164 Inefficient: 3 Summary Parameters: Vana: 127 CalDel: 93 Vthr: 95 (DAC units)
19080	Status : Grade: BAD Pixels: Dead: 803 Critical: 177 Inefficient: 0 Summary Parameters: Vana: 160 CalDel: 71 Vthr: 88 (DAC units)
19081	Status : Grade: BAD Pixels: Dead: 1377 Critical: 488 Inefficient: 126 Summary Parameters: Vana: 151 CalDel: 68 Vthr: 91 (DAC units)
